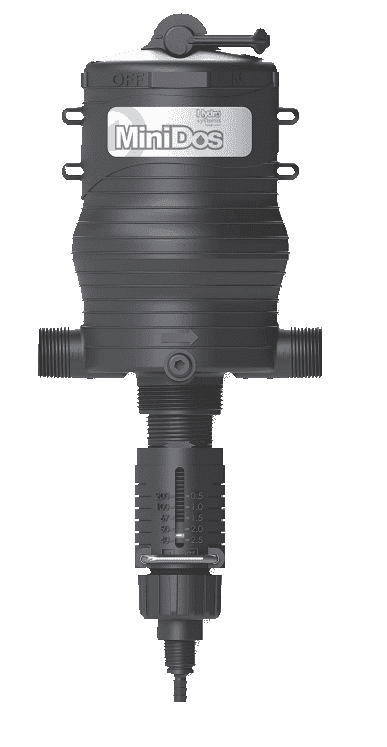

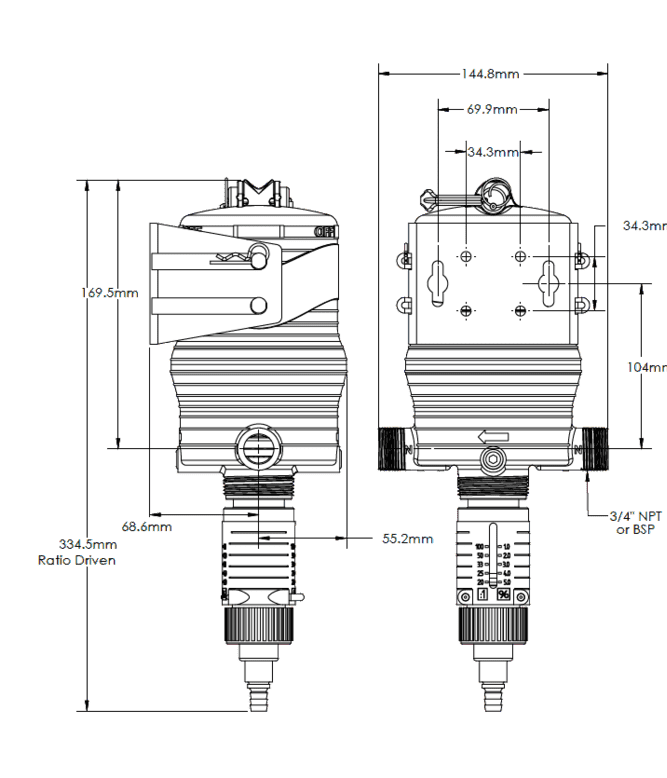

MiniDos
The Dosmatic proportional inline dispenser delivers quality, reliability and consistent. The Dosmatic proportional inline dispenser delivers quality, reliability and consistent accuracy. Water-driven injector where the chemical is mixed in a internal mixing chamber separate from the motor, extending the life of the motor.
- Precise mixing
- External ratio adjustment
- High operating pressure
- Highly chemical compatible materials, stronger body and cover.
- Large diameter valves in motor, resulting in reduced pressure loss.
- Mixing chamber design ensures a thorough and precise mixing of the water and injected chemical before leaving the unit.
- Ability to adjust ratios while in operation
- Ability to change wear parts without opening upper body
- Dosmatic MiniDos low to mid flow,
- Proportional injector
- Compact
| Model | Part # | Flow | Injection | Pressure | In/Out |
| MiniDos .4% | 112608 | 0.11 – 45 lpm | .025% – .4% | .41 – 9.7 bar | 3⁄4” BSP |
| MiniDos 1% | 112601 | 0.11 – 45 lpm | .2% – 1% | .41 – 9.7 bar | 3⁄4” BSP |
| MiniDos 2.5% | 112603 | 0.11 – 45 lpm | .5% – 2.5% | .41 – 9.7 bar | 3⁄4” BSP |
| MiniDos 5% | 112605 | 0.11 – 45 lpm | 1% – 5% | .41 – 9.7 bar | 3⁄4” BSP |
| MiniDos 10% | 112607 | 0.25 – 38 lpm | 2% – 10% | .41 – 4.5 bar | 3⁄4” BSP |
| MiniDos 20% | 112621 | 0.25 – 38 lpm | 4% – 20% | .41 – 4.5 bar | 3⁄4” BSP |

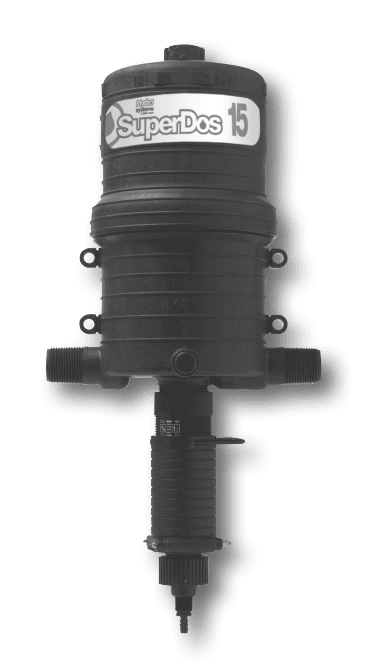

SuperDos 15
The Dosmatic proportional inline dispenser delivers quality, reliability and consistent. The Dosmatic proportional inline dispenser delivers quality, reliability and consistent accuracy. Water-driven injector where the chemical is mixed in a internal mixing chamber separate from the motor, extending the life of the motor.
- Precise mixing
- External ratio adjustment
- High operating pressure
- Highly chemical compatible materials, stronger body and cover.
- Large diameter valves in motor, resulting in reduced pressure loss.
- Mixing chamber design ensures a thorough and precise mixing of the water and injected chemical before leaving the unit.
- Ability to adjust ratios while in operation
- Ability to change wear parts without opening upper body
- Dosmatic mid flow,
- Proportional injector
| Model | Part # | Flow | Injection | Pressure | In/Out |
| SuperDos 15 .3% | 113711 | 1.9 – 56 lpm | .025% –.4% | .34 – 6.9 bar | 1¼”BSP |
| SuperDos 15 2.5% | 113712 | 1.9 – 56 lpm | .2% – 2.5% | .34 – 6.9 bar | 1¼”BSP |

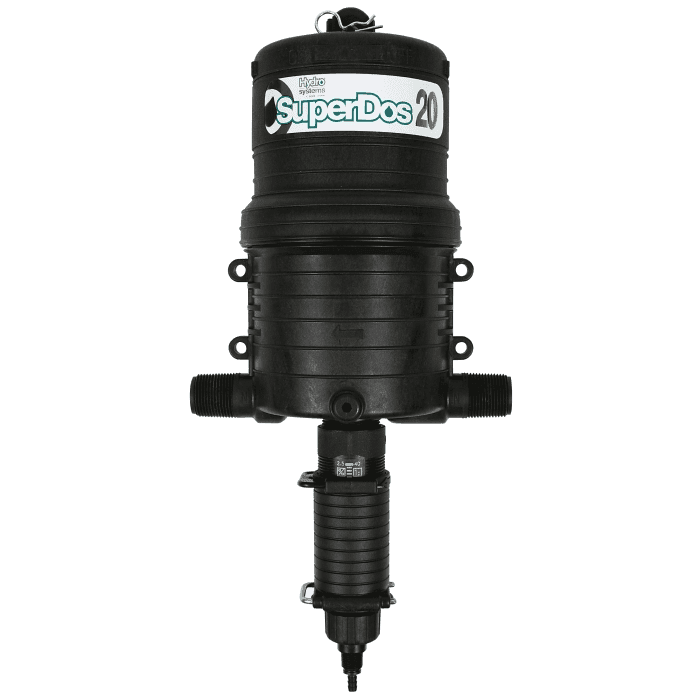

SuperDos 20
The Dosmatic proportional inline dispenser delivers quality, reliability and consistent. The Dosmatic proportional inline dispenser delivers quality, reliability and consistent accuracy. Water-driven injector where the chemical is mixed in a internal mixing chamber separate from the motor, extending the life of the motor.
- Precise mixing
- External ratio adjustment
- High operating pressure
- Highly chemical compatible materials, stronger body and cover.
- Large diameter valves in motor, resulting in reduced pressure loss.
- Mixing chamber design ensures a thorough and precise mixing of the water and injected chemical before leaving the unit.
- Ability to adjust ratios while in operation
- Ability to change wear parts without opening upper body
- Dosmatic mid flow,
- Proportional injector
| Model | Part # | Flow | Injection | Pressure | In/Out |
| SuperDos 20 .3% | 1137040 | 0.15 – 76 lpm | .025% – .4% | .34 – 6.9 bar | 1” BSP |
| SuperDos 20 2.5% | 1137050 | 0.15 – 76 lpm | .2% – 2.5% | .34 – 6.9 bar | 1” BSP |
| SuperDos 20 5% | 1137060 | 0.15 – 76 lpm | 1% – 5% | .34 – 6.9 bar | 1” BSP |
| SuperDos 20 10% | 1137060 | 0.15 – 76 lpm | 2% – 10% | .34 – 4.5 bar | 1” BSP |

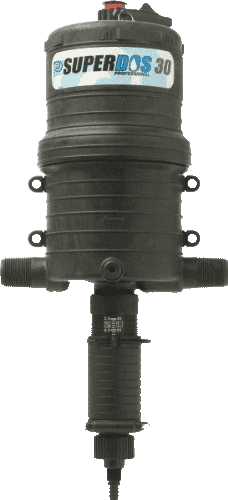

SuperDos 30
The Dosmatic proportional inline dispenser delivers quality, reliability and consistent. The Dosmatic proportional inline dispenser delivers quality, reliability and consistent accuracy. Water-driven injector where the chemical is mixed in a internal mixing chamber separate from the motor, extending the life of the motor.
- Precise mixing
- External ratio adjustment
- High operating pressure
- Highly chemical compatible materials, stronger body and cover.
- Large diameter valves in motor, resulting in reduced pressure loss.
- Mixing chamber design ensures a thorough and precise mixing of the water and injected chemical before leaving the unit.
- Ability to adjust ratios while in operation
- Ability to change wear parts without opening upper body
- Dosmatic mid flow,
- Proportional injector
| Model | Part # | Flow | Injection | Pressure | In/Out |
| SuperDos 30 .3% | 113708 | .57 – 113 lpm | .025% – .4% | .34 – 6.9 bar | 1” BSP |
| SuperDos 30 2.5% | 113709 | .57 – 113 lpm | .2% – 2.5% | .34 – 6.9 bar | 1” BSP |
| SuperDos 30 5% | 113710 | .57 – 113 lpm | 1% – 5% | .34 – 6.9 bar | 1” BSP |

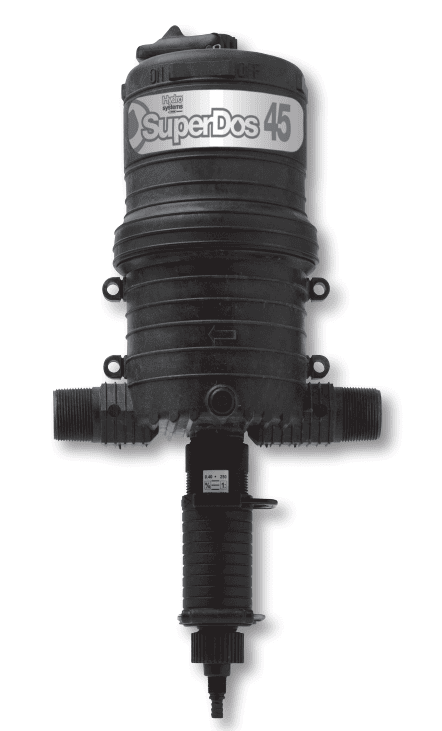

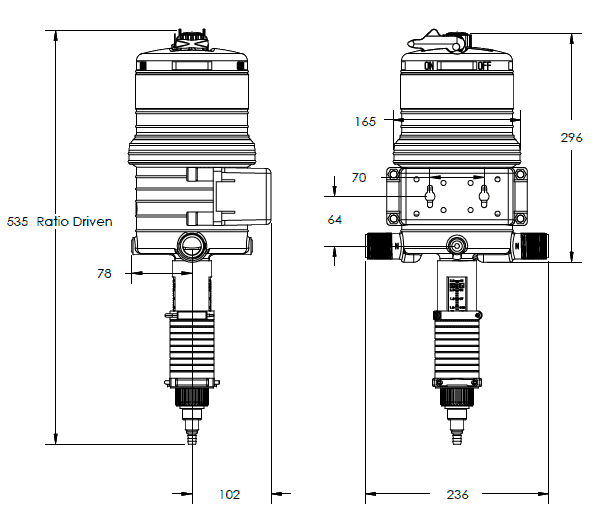

SuperDos 45
The Dosmatic proportional inline dispenser delivers quality, reliability and consistency. Water-driven injector where the chemical is mixed in a internal mixing chamber separate from the motor, extending the life of the motor.
- Precise mixing.
- External ratio adjustment.
- High operating pressure.
- Highly chemical compatible materials, stronger body and cover.
- Large diameter valves in motor, resulting in reduced pressure loss.
- Mixing chamber design ensures a thorough and precise mixing of the water and injected chemical before leaving the unit.
- Ability to adjust ratios while in operation.
- Ability to change wear parts without opening upper body.
- Dosmatic superDos 45 for high flow rates.
- Proportional injector.
| Model | Part # | Flow | Injection | Pressure | In/Out |
| SuperDos 45.3% | 113711 | 1.9 – 170 lpm | .025% – .4% | .34 – 6.9 bar | 1¼”BSP |
| SuperDos 45 2.5% | 113712 | 1.9 – 170 lpm | .2% – 2.5% | .34 – 6.9 bar | 1¼”BSP |
| SuperDos 45 5% | 113715 | 1.9 – 170 lpm | 1% – 5% | .34 – 6.9 bar | 1¼”BSP |
