Future-Proofing NZ Nurseries with Mosa Green Automation now bought to NZ by Planting Machines LtdAs New Zealand’s horticulture sector evolves, the need for precise, reliable automation has never been greater. Mosa Green brings over five decades of Italian engineering heritage to the Kiwi grower. Originally specialists in high-tech tool design since 1968, Mosa pivoted to the horticultural world in 1980 to solve a specific problem: making professional machinery easy to operate. Today, their dedicated Mosa Green division provides fully modular nursery systems that fit seamlessly into any NZ operation. Whether you are looking for precision seeding or versatile transplanting, our equipment offers the durability and low-maintenance performance required to keep your nursery competitive in a global market.
Drum Seeding Line 1400
Drum Seeding Line 1200
Drum Seeding Line 1000
Drum Seeding Line 800
Drum Seeding Line 600
Drum Seeding Line SDS
Step Seeding Line TO55.T

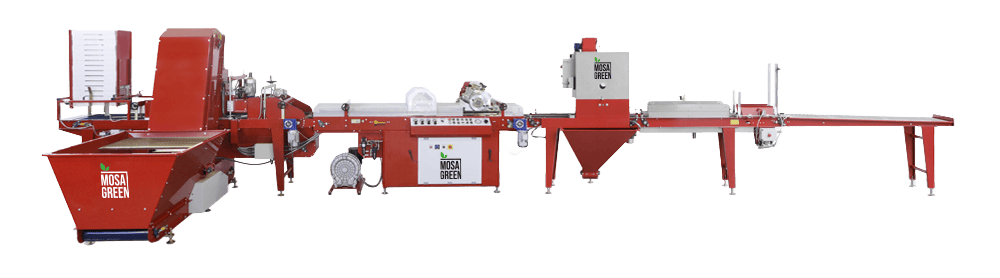

Drum Seeding Line 1400
Seeding line for big production volumes. Equipped with a blade style compactor ensuring uniform filling of the container also at high working speed. High performance especially with heavy rigid plastic trays and Styrofoam containers.
| Production rate | 1400 Trays/Hour |
| Tray dimensions (max) | 700 x 500 x 100 mm |
| Installed power | 10 kW |
| Air consumption (max) | 140 l/min |
| Water consumption (max) | 25 l/min |

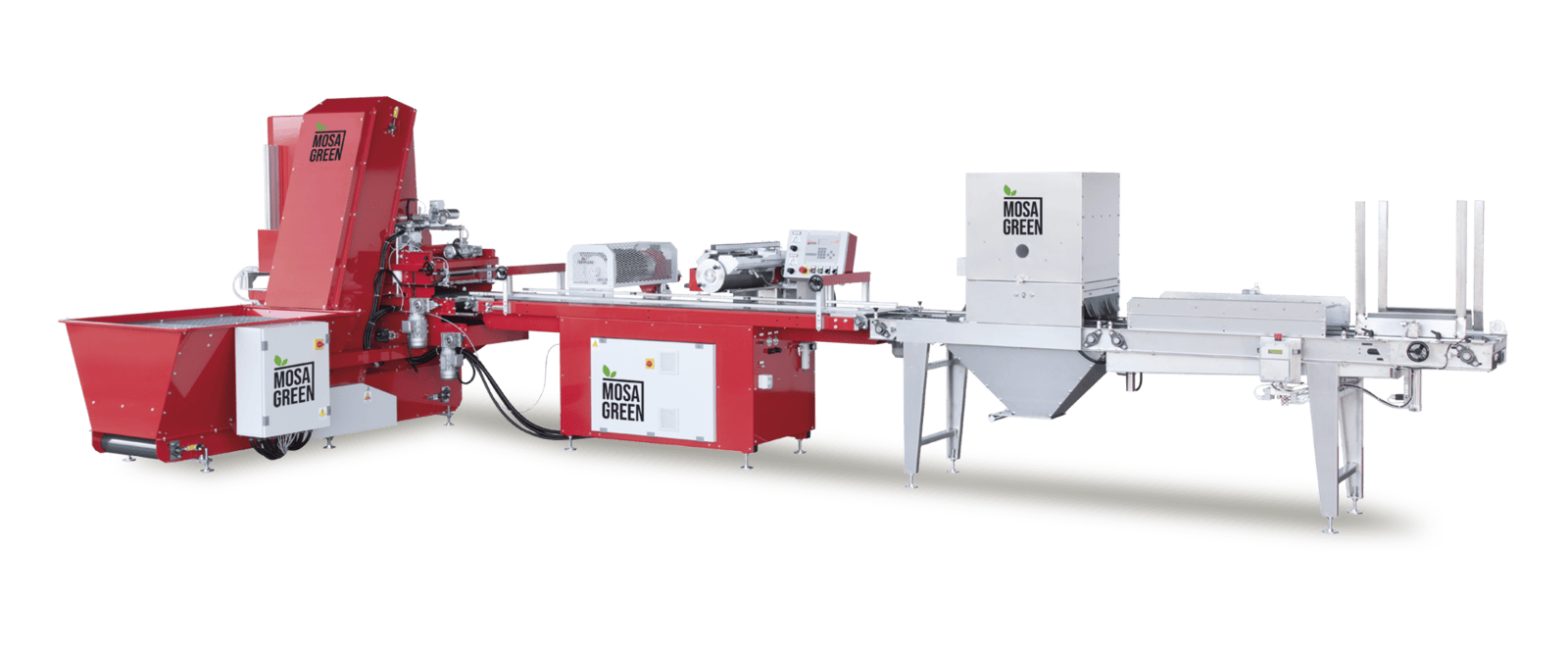

Drum Seeding Line 1200
For medium/big production volumes. Motorised sowing drum (Ø 210 mm) with continuous or step seeding. Rotor style compactor ensures uniform filling at medium-high speeds.
| Production rate | 1200 Trays/Hour |
| Tray dimensions (max) | 700 x 500 x 160 mm |
| Installed power | 9.7 kW |
| Air consumption (max) | 140 l/min |
| Water consumption (max) | 25 l/min |

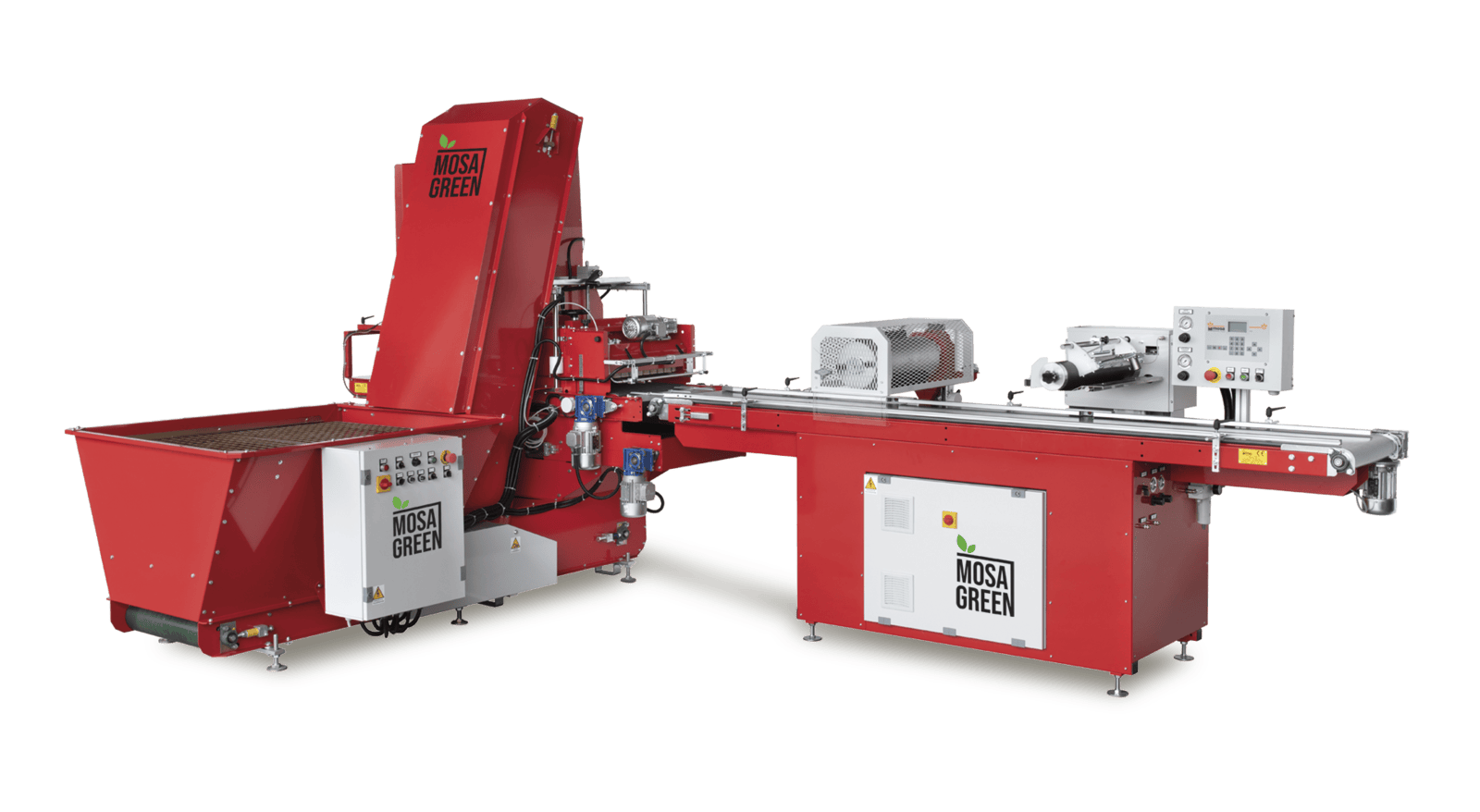

Drum Seeding Line 1000
For medium/big production volumes. Sowing drum (Ø 106 mm). Belt conveyor system ensures high performance with any container type.
| Production rate | 1000 Trays/Hour |
| Tray dimensions (max) | 700 x 500 x 160 mm |
| Installed power | 9.7 kW |
| Air consumption (max) | 140 l/min |
| Water consumption (max) | 25 l/min |

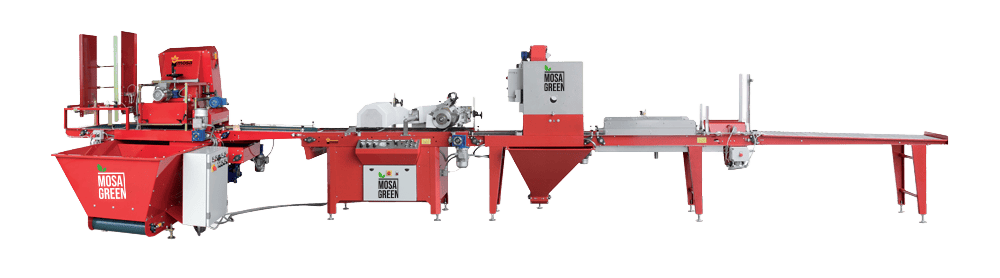

Drum Seeding Line 800
Designed for medium production volumes. Propeller compactor with adjustable speed ensures uniform filling. Suitable for containers with a high cell count.
| Production rate | 800 Trays/Hour |
| Tray dimensions (max) | 700 x 500 x 100 mm |
| Installed power | 8 kW |
| Air consumption (max) | 135 l/min |
| Water consumption (max) | 25 l/min |

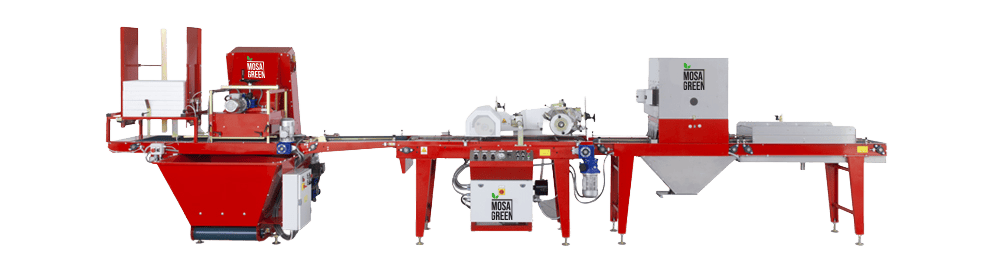

Drum Seeding Line 600
For medium/small production volumes. Includes propeller compactor with adjustable speed. Guaranteed high accuracy for all seed varieties.
| Production rate | 600 Trays/Hour |
| Tray dimensions (max) | 700 x 500 x 100 mm |
| Installed power | 5 kW |
| Air consumption (max) | 135 l/min |
| Water consumption (max) | 25 l/min |

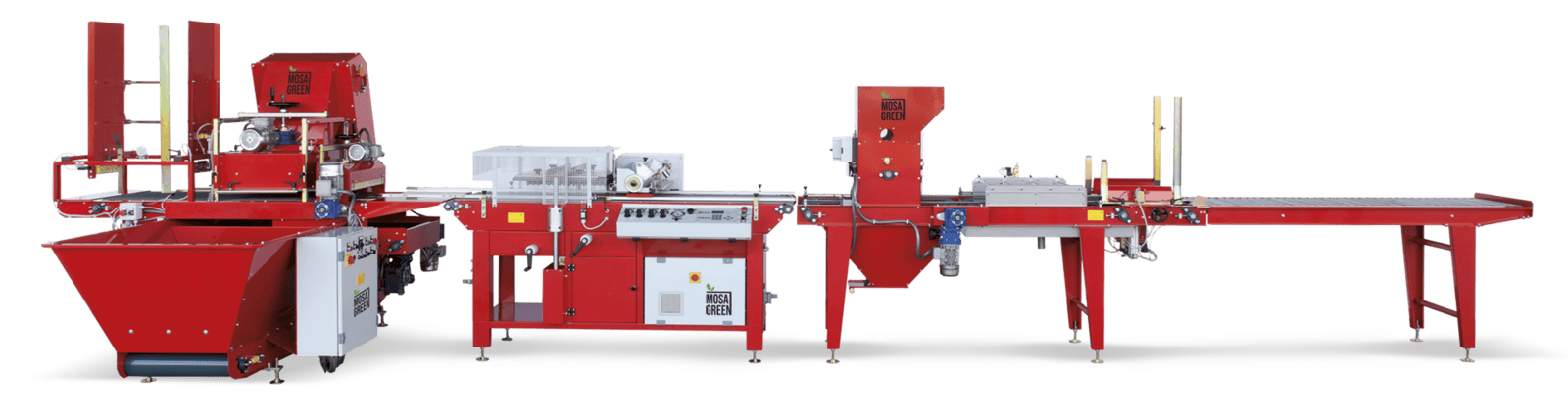

Drum Seeding Line SDS
Small Drum System (SDS). Motorised sowing drum (Ø 106 mm) offers extreme versatility. Ideal for thermoformed containers for vegetables and herbs.
| Production rate | 600 / 800 Trays/Hour |
| Tray dimensions (max) | 700 x 500 x 100 mm |
| Installed power | 5 kW |
| Air consumption (max) | 140 l/min |
| Water consumption (max) | 25 l/min |

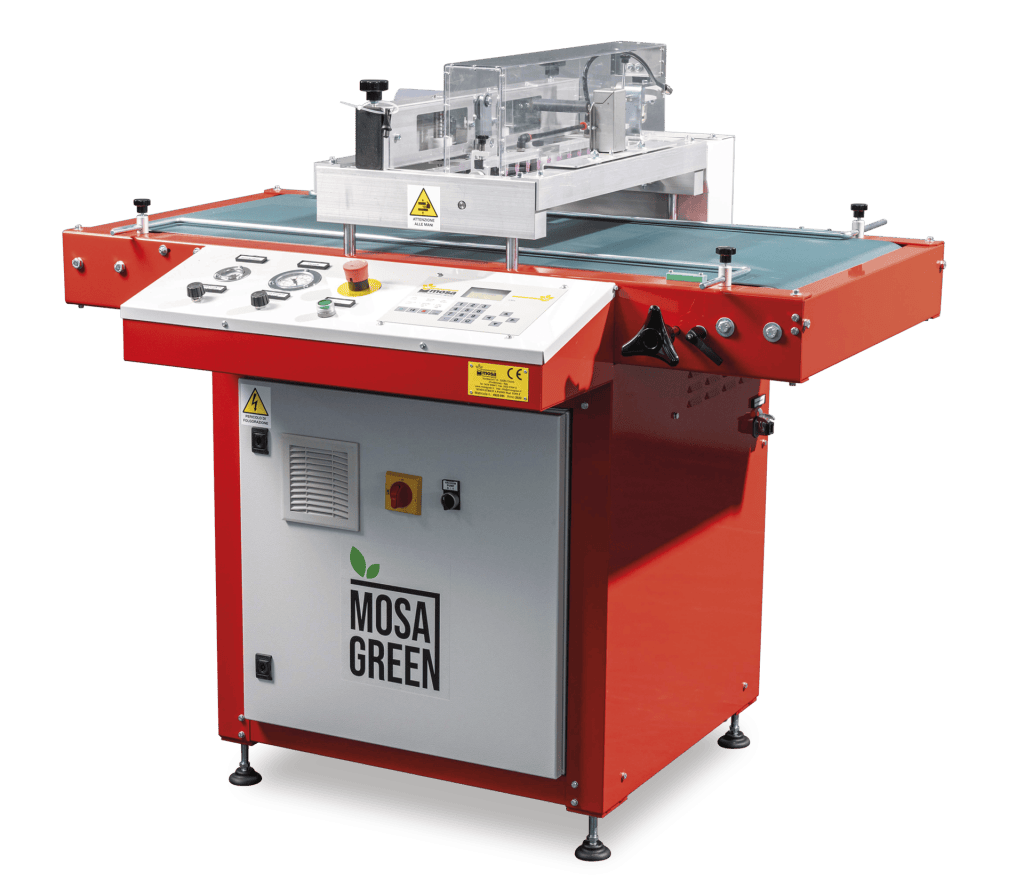

Step Seeding Line TO55.T
For small production volumes. Needle seeding bar ensures highest constant precision. Particularly suitable for frequent changes of seed/containers.
| Working speed | 2 Seconds/Row |
| Tray dimensions (max) | 700 x 500 x 100 mm |
| Installed power | 3 kW |
| Air consumption (max) | 135 l/min |
| Water consumption (max) | 25 l/min |
Seeder S20S
Seeder S22S
Seeder S9A
Seeder TO54R
Seeder S11S
Seeder SE2R
Seeder SM2R
Seeder SP13A
Seeder TO55.T

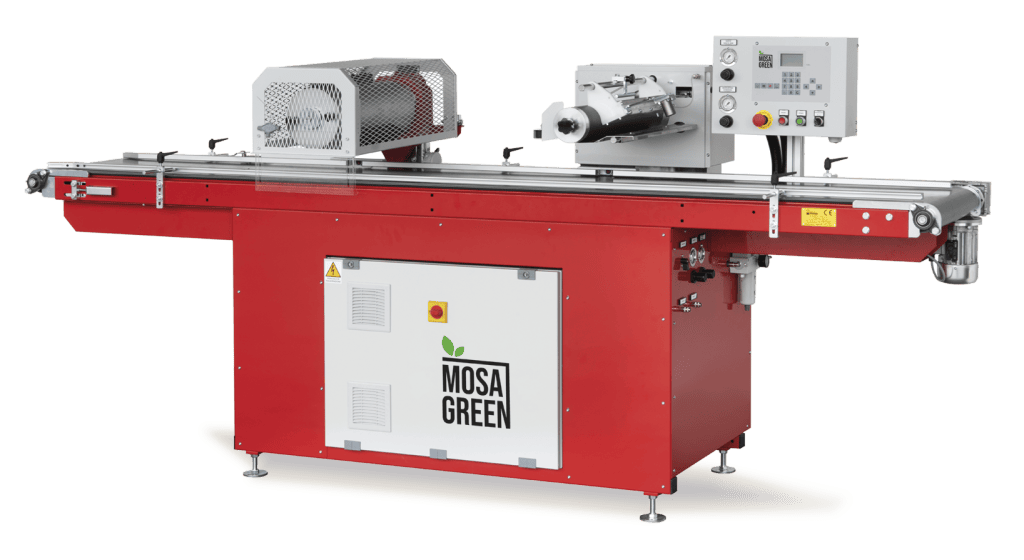

Seeder S20S
The S20S seeder is designed for medium-scale productions and is equipped with a conveyor belt for containers. It is characterised by high seeding and dibbling accuracy thanks to its two motorised drums, each of which is controlled by its own drive. The seeding drum (Ø 106 mm) allows to perform continuous seeding (vegetables) and step seeding (flowers and herbs). The seeding parameters are set and managed via the control panel.
| Production rate | 800/1,000 Trays/Hour |
| Tray dimensions | 700 x 500 x 160mm |
| Installed power | 2.5kW |
| Air consumption | 140 l/min |
| Weight | 400kg |
| Dimensions | 3,200 x 1,100 mm |

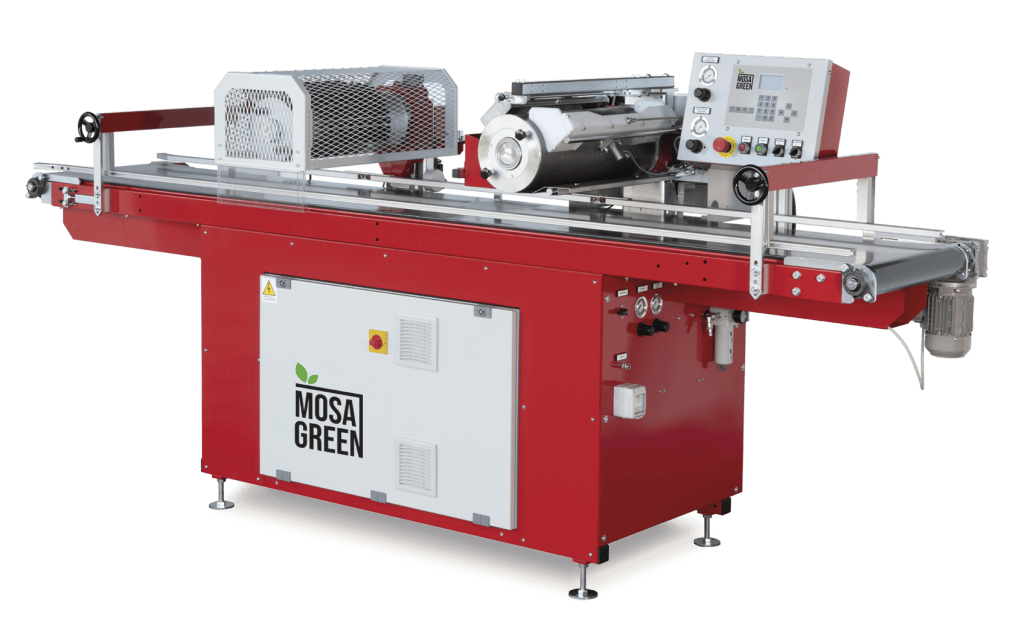

Seeder S22S
The S22S seeder is designed for large-scale productions and is equipped with a conveyor belt for containers. It offers high seeding and dibbling accuracy thanks to its two motorised drums, each of which is controlled by its own drive. The seeding drum (Ø 210 mm) allows to perform continuous seeding (vegetables) and step seeding (flowers and herbs). The seeder is equipped with a control panel from which the main seeding and filling parameters can be set and adjusted.
| Production rate | 1,000 Trays/Hour |
| Tray dimensions | 700 x 500 x 160mm |
| Installed power | 5.5kW |
| Air consumption | 140 l/min |
| Weight | 400kg |
| Dimensions | 3,200 x 1,100 mm |
Seeder S9A
The S9A seeder is designed for large-scale productions and allows for adjusting the speed and the seeding parameters depending on seed variety and container type. It offers high performance and quick retooling times, particularly when using rigid plastic and Styrofoam containers. Designed to be used in combination with the R9G filler, the seeder is equipped with a control panel from which the main seeding and filling parameters can be set and adjusted.
| Production rate | 1,400 Trays/Hour |
| Tray dimensions | 700 x 500 x 160mm |
| Installed power | 5.5kW |
| Air consumption | 140 l/min |
| Weight | 400kg |
| Dimensions | 3,200 x 1,100 mm |

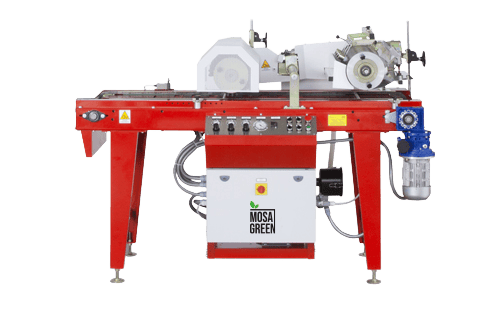

Seeder TO54R
The TO54R and TO54RS seeders are designed for medium-scale productions. They offer high seeding accuracy for all seed varieties and container types, including those with a high number of cells. The seeders present the main features of the larger versions, while remaining more compact in size, and are suitable to be combined with the fillers of the RME series.
| Production rate | 600 / 800 Trays/Hour |
| Tray dimensions | 700 x 500 x 160mm |
| Installed power | 4kW |
| Air consumption | 135 l/min |
| Weight | 400kg |
| Dimensions | 2,200 x 1,020 mm |

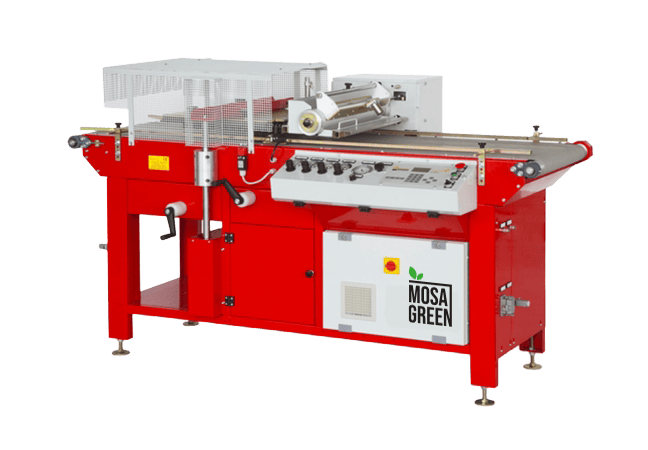

Seeder S11S
The S11S electronic seeder is designed for medium to small-scale productions. It features a high versatility thanks to its motorised seeding drum (Ø106 mm) that allows to perform continuous seeding and step seeding. The seeder is equipped with a belt conveyor that guarantees high performance for any type of container and with an electronic control for setting and adjusting the seeding process.
| Production rate | 600 / 800 Trays/Hour |
| Tray dimensions | 700 x 500 x 160mm |
| Installed power | 5.5kW |
| Air consumption | 135 l/min |
| Weight | 380kg |
| Dimensions | 2,150 x 1,150 mm |

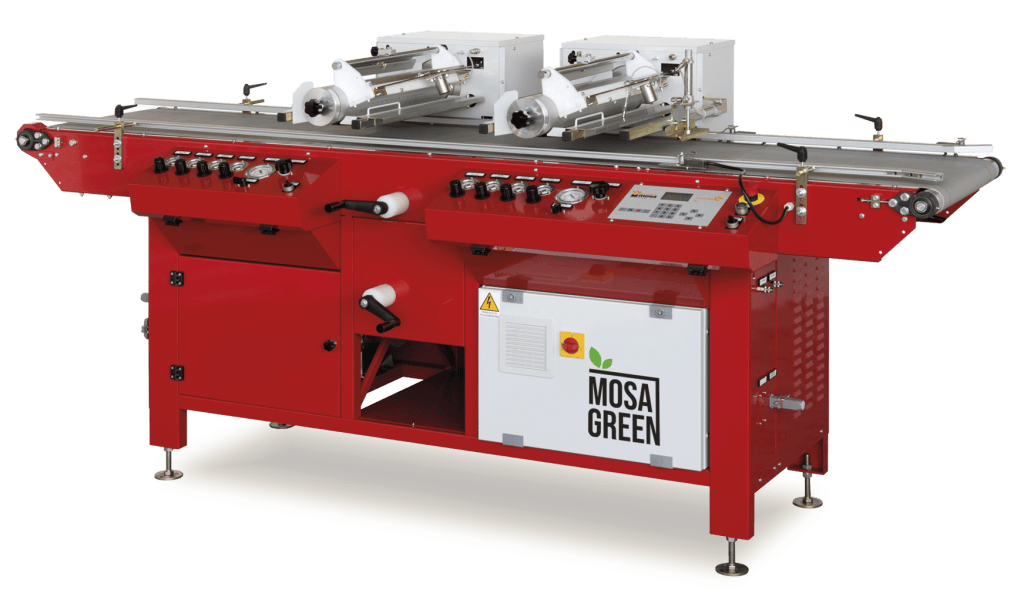

Seeder SE2R
The SE2R double drum electronic seeder is designed for medium to small-scale productions and is equipped with two motorised seeding drums (Ø 106 mm). The speed and the seeding parameters are electronically adjusted depending on seed variety and container type. This seeder allows for customizing the disposition of the seeds inside the pot/cell and for seeding in containers with staggered cells. Il allows for depositing different types of seeds in the same cell, too.
| Production rate | 1,400 Trays/Hour |
| Tray dimensions | 700 x 500 x 160mm |
| Installed power | 4.05kW |
| Air consumption | 200 l/min |
| Weight | 545kg |
| Dimensions | 2,700 x 1,150 mm |

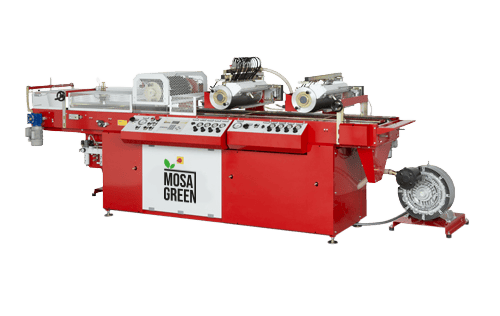

Seeder SM2R
The SM2R double drum seeder is designed for large-scale productions. It is equipped with two motorised seeding drums (Ø 210 mm), with electronic adjustment of the speed and of the seeding parameters depending on seed variety and container type. This seeder allows for customizing the disposition of the seeds inside the pot/cell and for seeding in containers with staggered cells. It allows for depositing different types of seeds in the same cell, too.
| Production rate | 1,400 Trays/Hour |
| Tray dimensions | 700 x 500 x 100mm |
| Installed power | 7.5kW |
| Air consumption | 250 l/min |
| Weight | 700kg |
| Dimensions | 3,600 x 1,100 mm |
Seeder SP13A
The SP13A pneumatic step seeder is designed for medium to small-scale productions. It is equipped with a dibbling and row by row seeding mechanism with nozzle bar for small quantities of both, raw and pelleted seeds. This seeder can be used with any type of container.
| Production rate | 30 Trays/Hour |
| Tray dimensions | 720 x 480 x 130mm |
| Air consumption | 100 l/min |
| Weight | 80kg |
| Dimensions | 1,600 x 950 mm |
Seeder TO55.T
The TO55.T step seeder is designed for medium to small-scale productions and is equipped with a conveyor belt for containers. It is equipped with dibbling and a row by row seeding mechanism with a needle bar and disposes of 8 sets of needles of different diameters, which allow to process any variety of seeds. It features an interface for setting up seeding programmes and for eventually modifying its parameters also during operation. This seeder, which is easy to maintain and has quick retooling times, is particularly suitable for frequent seed/container changeovers and does not require a connection to compressed air.
| Production rate | 2 Seconds/Row |
| Tray dimensions | 700 x 500 x 100mm |
| Installed power | 0.45kW |
| Weight | 170kg |
| Dimensions | 1,370 x 1,040 mm |
Watch Machine in Action:
Tray Filler R9G
Tray Filler R20G
Filler RME63C
Filler RME63B
Filler R12N
Classic MG Pot Filler
Substrate Mixer MIX 13S
Big Bale Crusher BB14G

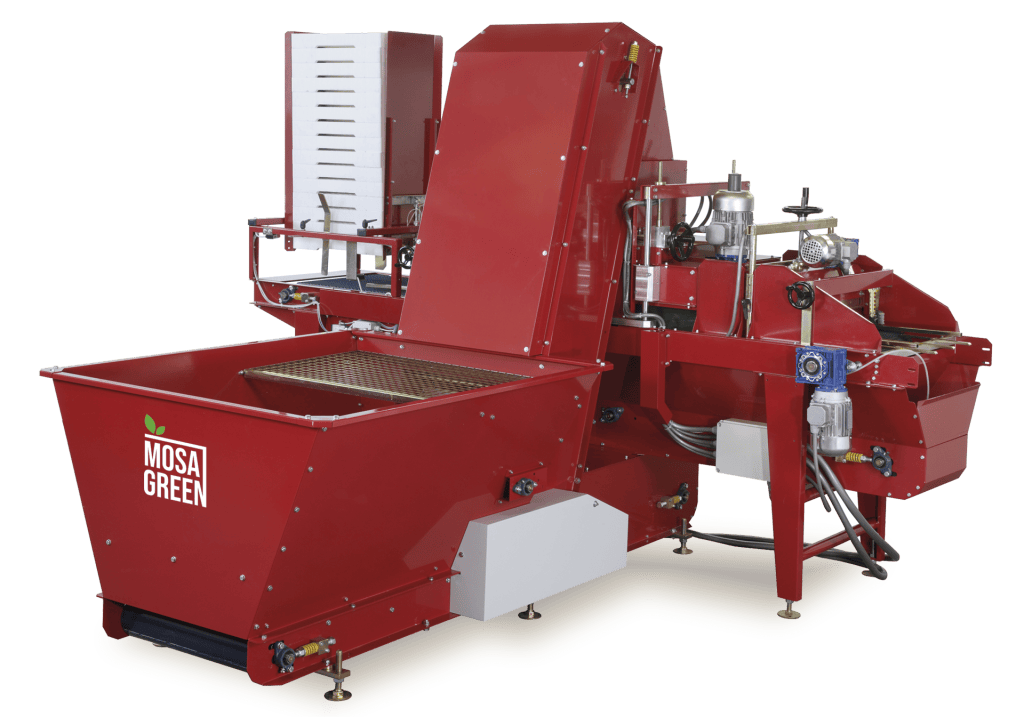

Tray Filler R9G
The R9G filler is designed for container filling and equipped with a 1000-litre hopper and blade style compactor for a high degree of substrate compaction. Suitable for any type of cell tray, delivering optimum performance even at high speed.
| Hopper Capacity | 1000 Litres |
| Compactor | Blade Style |
| Belt Type | High Grip Surface |
| Production rate | 1400 Trays/Hour |
| Tray dimensions | 700x500x160 mm |
| Installed power | 5 kW |
| Weight | 985 kg |
| Dimensions | 3200x2700 mm |

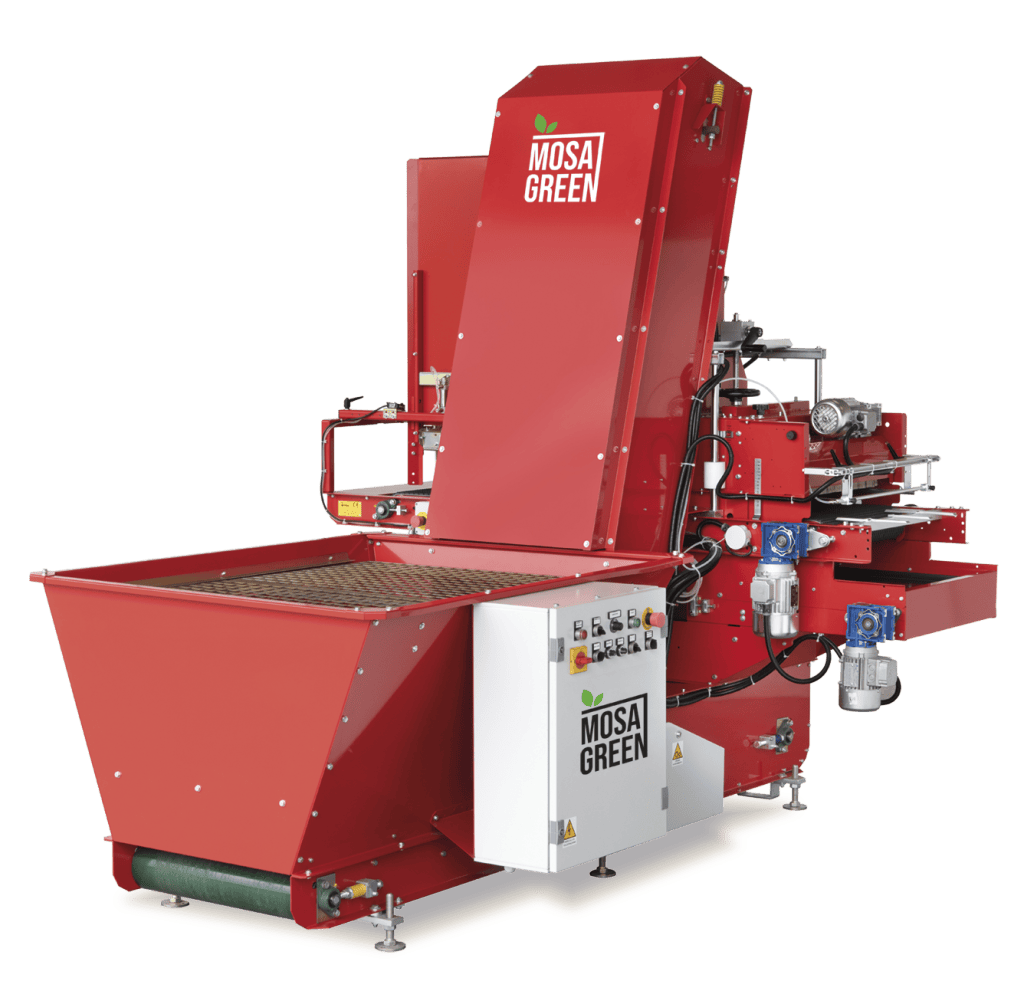

Tray Filler R20G
Equipped with a rotor style compactor for uniform filling and high substrate compaction. Allows for setting up filling programmes and works perfectly at medium-high speeds.
| Hopper Capacity | 1000 Litres |
| Compactor | Rotor Style |
| Programs | Adjustable Filling Modes |

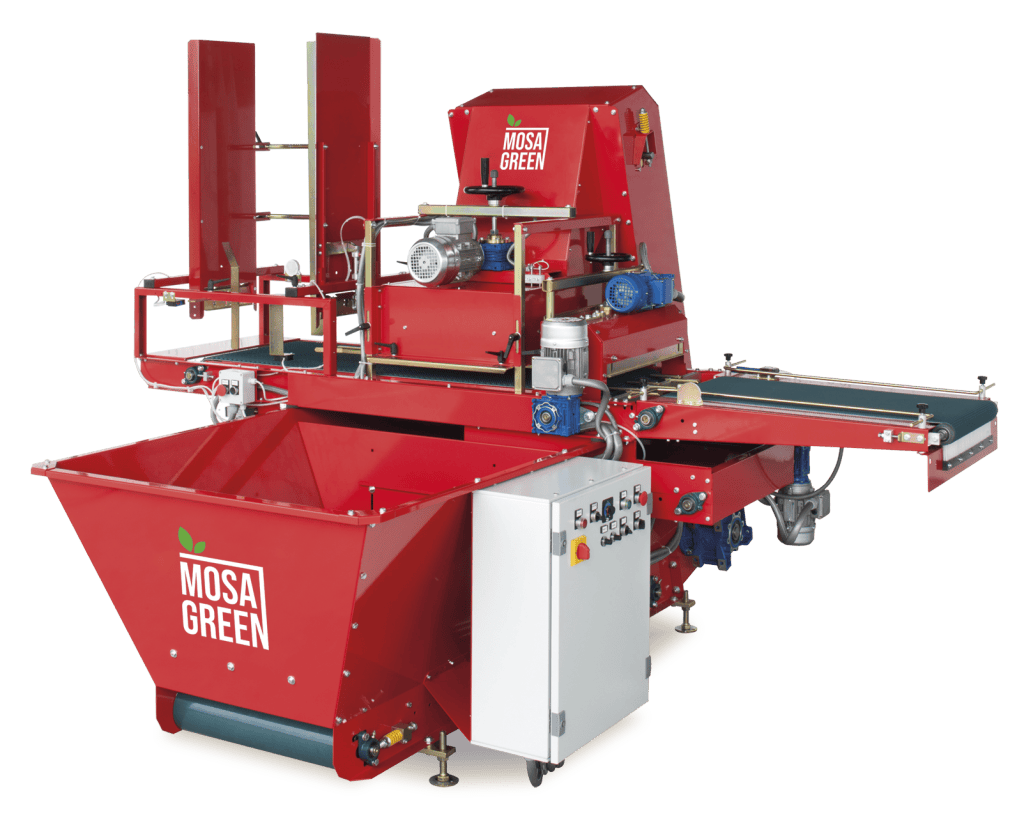

Filler RME63C
Designed for filling containers or trays with inserted pots or mini-trays. Features a propeller style compactor with adjustable speed and a motorised cleaning brush.
| Hopper Capacity | 1000 Litres |
| Compactor | Blade Style |
| Belt Type | High Grip Surface |
| Production rate | 800 Trays/Hour |
| Tray dimensions | 700x500x160 mm |
| Installed power | 2.9 kW |
| Weight | 655 kg |
| Dimensions | 2850x2500 mm |

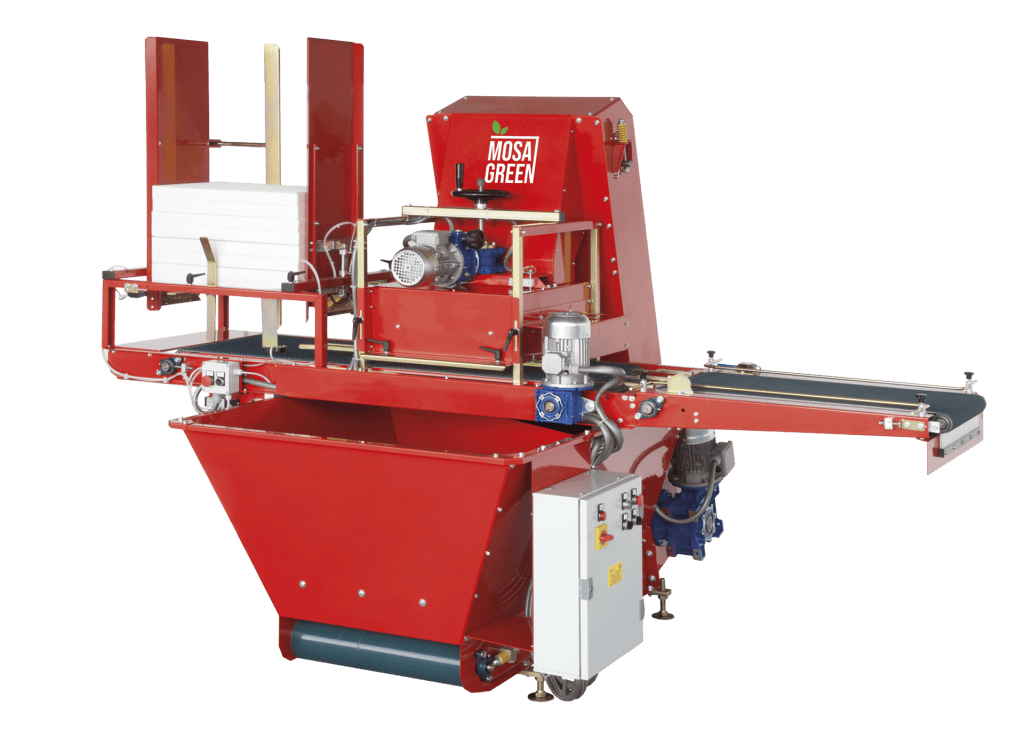

Filler RME63B
A variation of the RME series, designed for trays with inserted pots. Includes a high grip conveyor and adjustable propeller compactor.
| Hopper Capacity | 1000 Litres |
| Compactor | Propeller Style |
| Belt Type | High Grip Surface |
| Production rate | 600 Trays/Hour |
| Tray dimensions | 700x500x160 mm |
| Installed power | 2.5 kW |
| Weight | 560 kg |
| Dimensions | 2100x2500 mm |

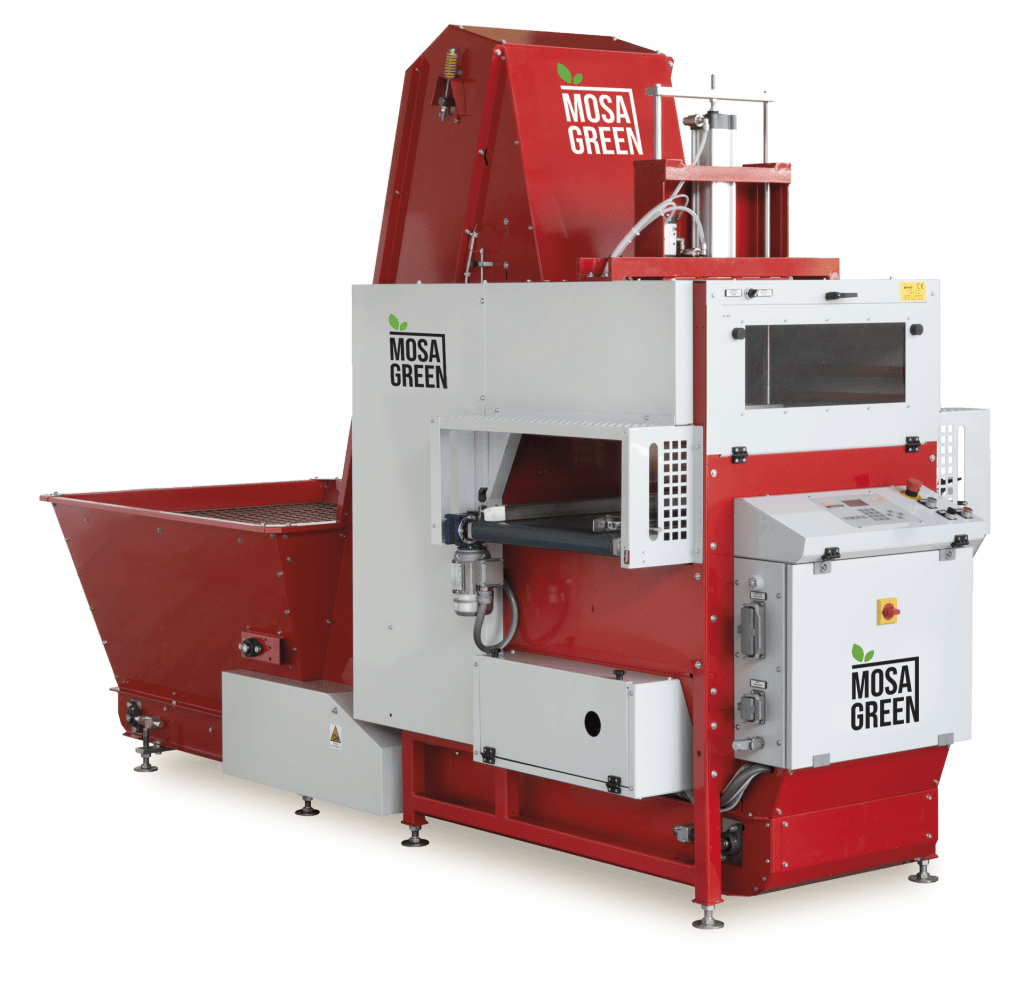

Filler R12N
Designed for filling pots placed in pot-holders. Suitable for pot seeding lines, transplanting lines, and forestry market containers. Includes plates for pressing, dibbling, or drilling.
| Hopper Capacity | 1000 Litres |
| Production rate | 1000 Trays/Hour |
| Tray dimensions | 700x530x200 mm |
| Installed power | 2.72 kW |
| Weight | 625 kg |
| Dimensions | 3400x1600 mm |
Classic MG Pot Filler
Designed for individual pots. Features a pot-holder carrousel and pot magazine. Allows for different diameter augers with quick retooling.
| Hopper Capacity | 1000 Litres |
| Pot diameter | 80-220 mm |
| Production rate | 500/2500 pots/Hour |
| Installed power | 1.9 kW |
| Weight | 470 kg |
| Dimensions | 3100x2480 mm |

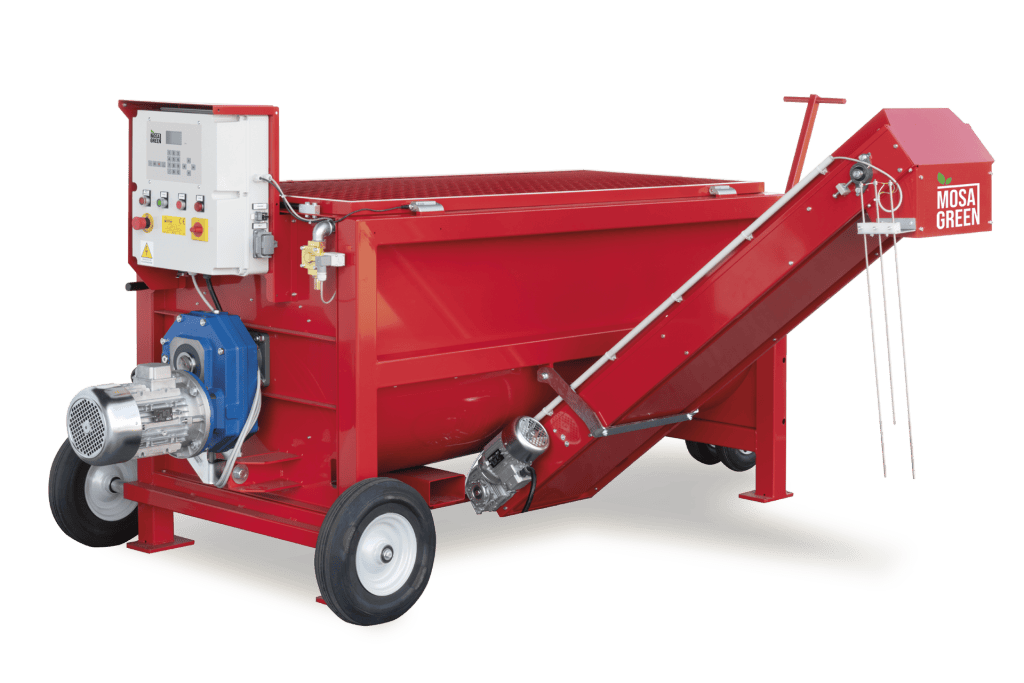

Substrate Mixer MIX 13S
Features a double-helix mixing shaft and a wetting system with solenoid valve. Level sensors and timer control ensure perfect substrate preparation. The mixed substrate is discharged by means of a 1.7 m belt
| Capacity | 1000 Litres |
| Installed power | 4.7 kW |
| Weight | 650 kg |
| Dimensions | 2748x2230 mm |

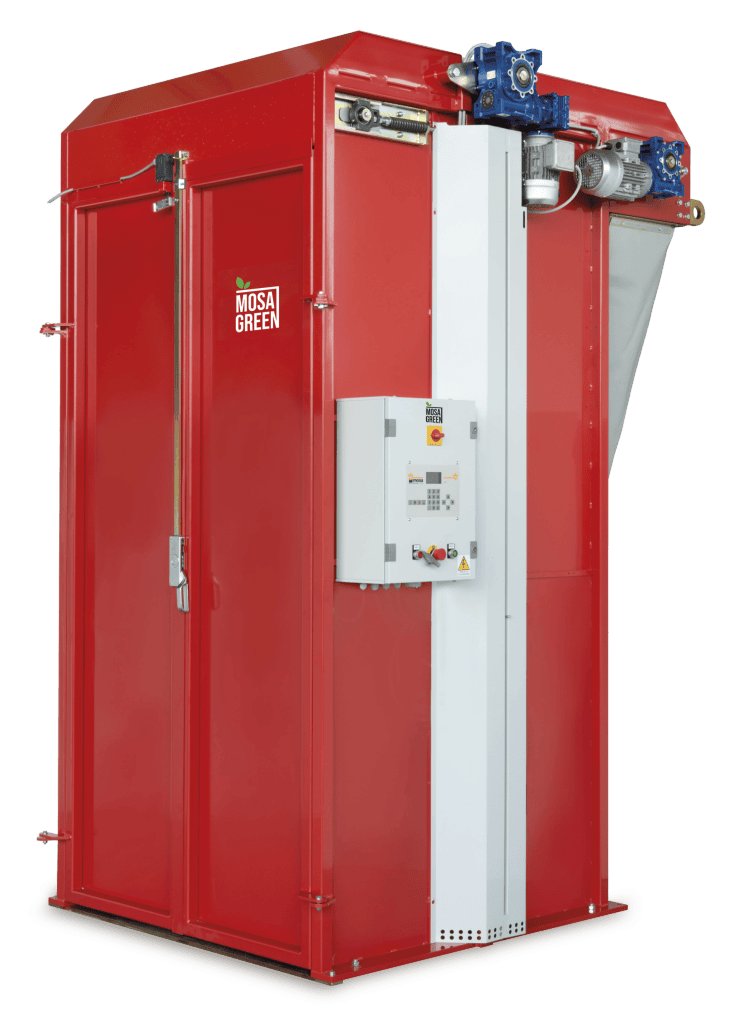

Big Bale Crusher BB14G
Designed for crushing Big-Bales of substrate. Available in four different heights. Equipped with a mobile pallet carrier platform and level sensor.
| Sensor Type | Level & Safety Sensors |
| Heights | 4 Options Available |
| Working speed | 5 Cycles/Hour |
| Big Bale dimensions | 1200x1150x2650 mm |
| Installed power | 2,7 kW |
| Weight | 1350 kg |
| Dimensions | 1805x2100x2477 mm |
| 1805x2100x2877 mm | |
| 1805x2100x3127 mm | |
| 1805x2100x3377 mm |
TEA 600
TEA 1500N/2000N
TEA 1500J/2000J

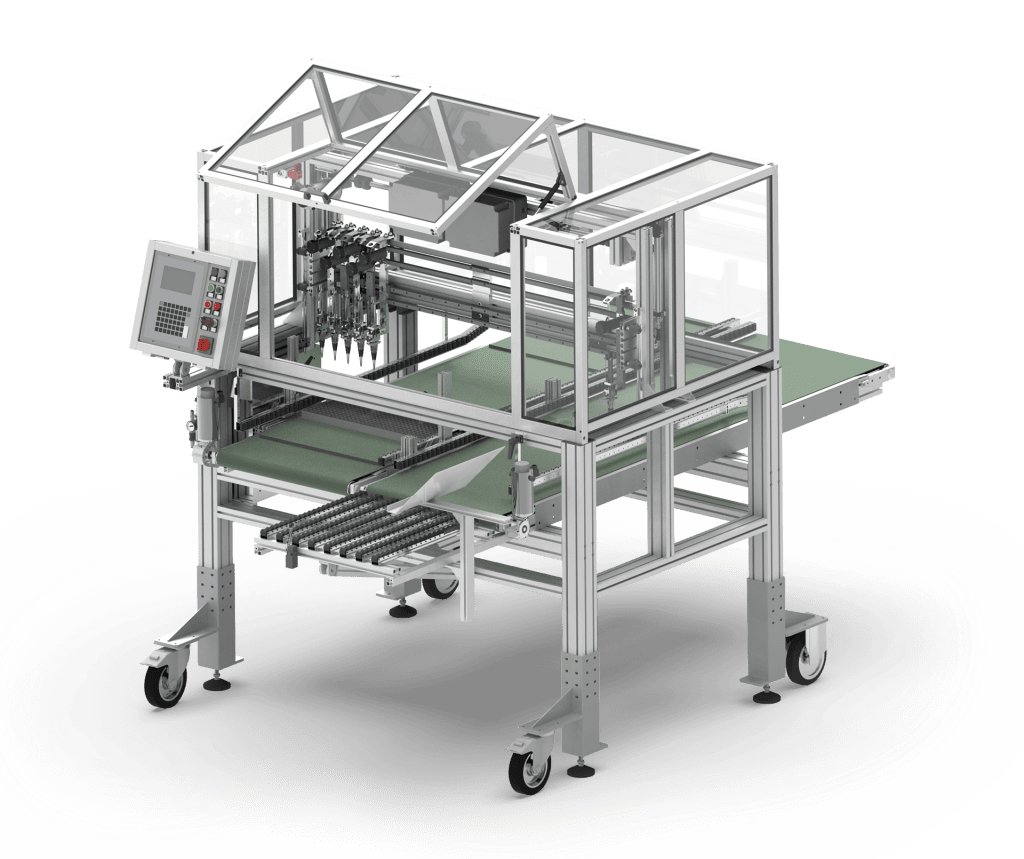

TEA 600
The TEA 600 transplanter is designed for the automatic transplanting of seedlings and is characterised by its ease of use and low maintenance requirements. The grippers are individually motorised and allow the seedlings to be picked up laterally as well. The lateral movement of the grippers, as well as the machine parameters and transplant programmes are all managed from the control panel. The parameters and programmes can be stored on a USB stick.
| Features | High Precision Grippers |
| Production rate | 1,500 / Plants/Hour/Gripper (very fast) |
| Number of grippers (max) | 12 |
| Tray dimensions | 400 x 600 mm |
| Air consumption (max) | 70 l/min |
| Weight | 600 kg |
| Dimensions | 1900x2900 mm |
TEA 1500N and 2000N
The TEA 1500N and 2000N transplanters are designed for the automatic transplanting of seedlings and feature gripper units that are positioned parallel to the feed belt. The grippers are individually motorised and allow the seedlings to be picked up laterally as well. The quantity of grippers required can be modified according to the selected transplantation programme. The lateral movement of the grippers, as well as the machine parameters and transplant programmes are all managed from the control panel. The parameters and programmes can be stored on a USB stick.
| Speed | High Capacity |
| Versatility | Adjustable Gripper Spacing |
| Production rate | 1,000 / Plants/Hour/Gripper |
| Number of grippers (max) | 12/16 |
| Tray dimensions | 400 x 600 mm |
| Air consumption (max) | 80 l/min |
| Weight | 600/700 kg |
| Dimensions | 2200x3200/2200x4180 mm |

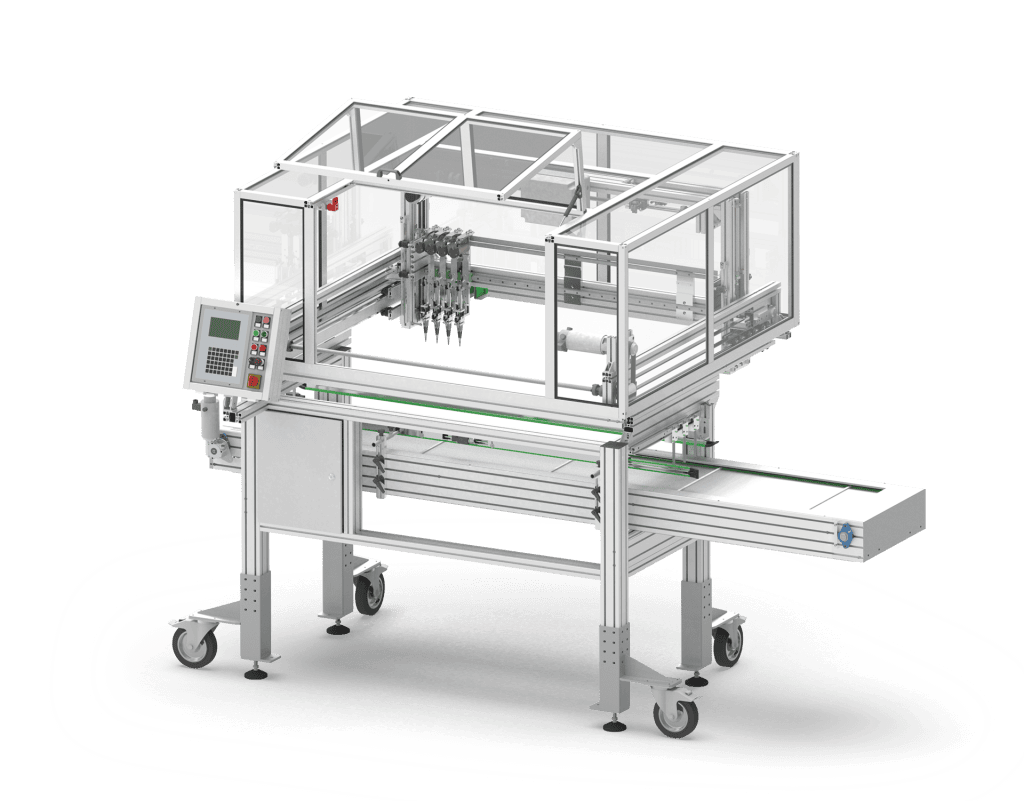

TEA 1500J and 2000J
The TEA 1500J and 2000J transplanters are designed for the automatic transplanting of seedlings in pots. They have been specifically developed for the connection to potting machines with circular or linear pot track. The grippers are individually motorised and allow the seedlings to be picked up laterally as well. The lateral movement of the grippers, as well as the machine parameters and transplant programmes are all managed from the control panel. The parameters and programmes can be stored on a USB stick.
| Production rate | 1,000 / Plants/Hour/Gripper |
| Number of grippers (max) | 12/16 |
| Tray dimensions | 400 x 600 mm |
| Air consumption (max) | 80 l/min |
| Weight | 655/700 kg |
| Dimensions | 3200x1940/4200x1940 mm |
Double Rail
Aqua Green
Aqua Touch
Aqua Green Connect

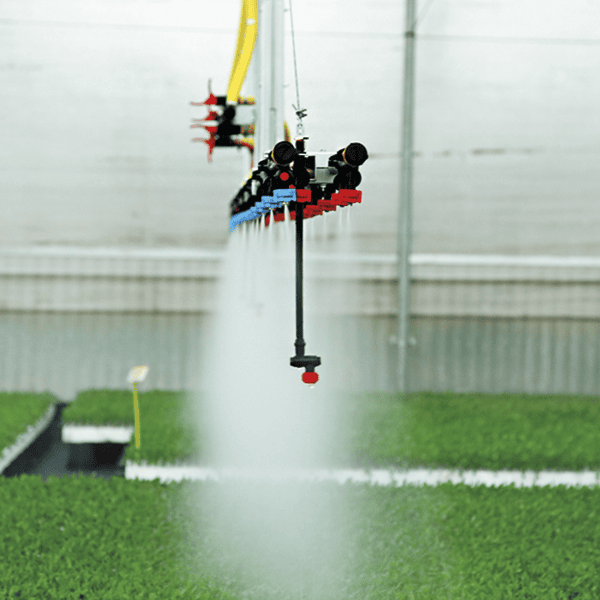

Double Rail TO56-2R
Double Rail System:
- Rails with section profile designed by Mosa Green, anchored to the greenhouse structure
- Mosa Green pre-tensioning and pulling system for greenhouses up to a length of 270 m
Irrigation:
- Low pressure irrigation, treatment and fertigation (max 6 bar)
- High pressure treatment (max. 16 bar)
- Power connection: 230 V single phase
Aqua Green
Setup and Management:
- Management of irrigation programs
- Division of the irrigation area into up to 10 zones
- 5 programmed starts associated with different irrigation zones
- Control of up to 3 solenoid valves for each boom
- Control of up to 5 irrigation booms in simultaneous operation
- Remote control via Mosa Green App

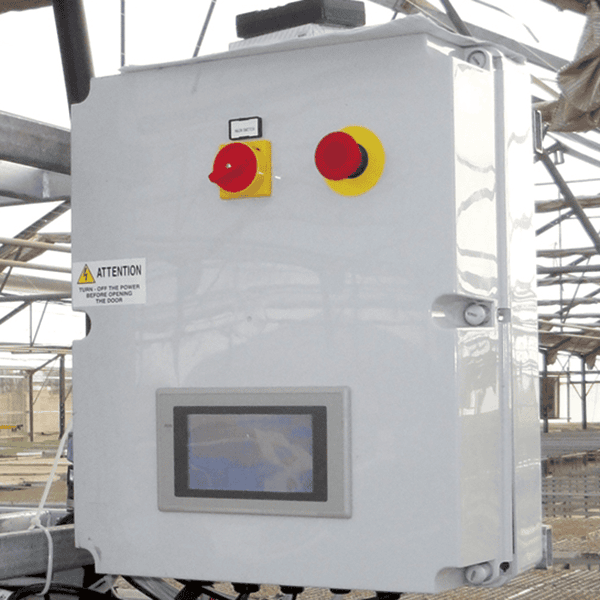

Aqua Touch
Setup and Management:
- Touchscreen panel
- Setup and management of irrigation programmes
- Division of the irrigation area into up to 20 zones
- 10 programmed starts
- Control of up to 8 irrigation booms in simultaneous operation
- Remote control via Mosa Green software on PC
Aqua Green Connect
Setup and Management:
- Division of the irrigation area into up to 10 zones
- Control of up to 5 irrigation booms with individual control boxes
- Remote control via Mosa Green App
- Acquisition and storage of sensor data
- Archive of daily irrigation reports
Automatic Stacker TO59
Conveyor Belt N11M
Conveyor Belt N11M-F

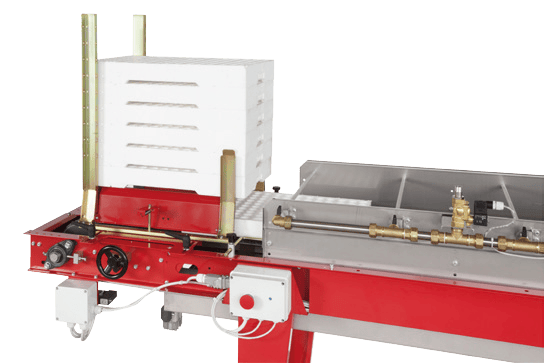

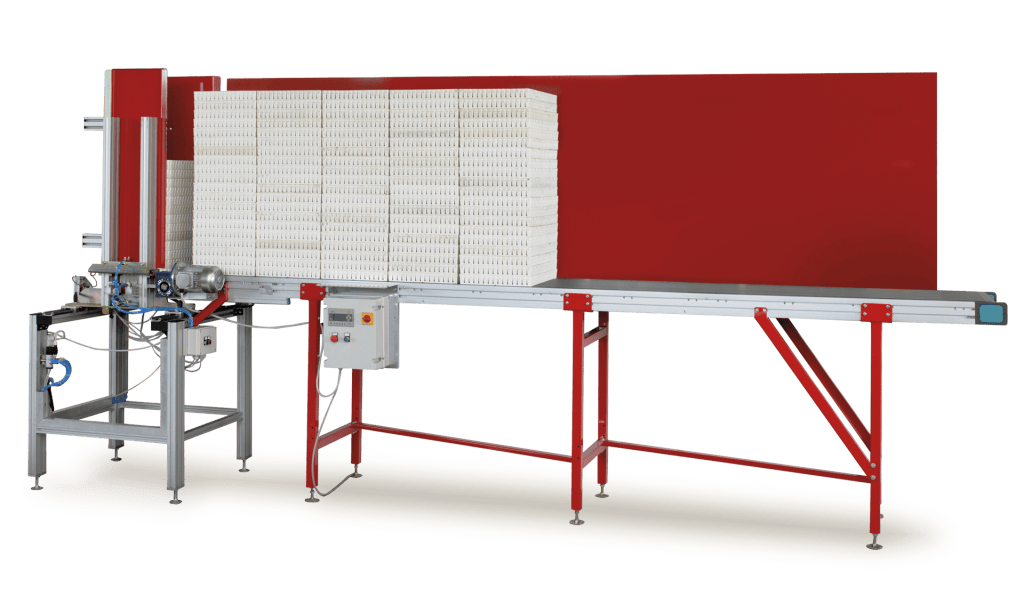

Automatic Stacker TO59
The TO59 automatic tray loader is designed for automatically feeding a container destacker integrated in a seeding line. It is available with an either 3 or 4 metres long conveyor belt. This loader allows stacks of containers to be automatically fed into a destacker that is connected to a filler and it is available in two versions: one for hard plastic containers and one for Styrofoam containers.
| Application | Automatic Stack Feeding |
| Compatibility | Styrofoam & Hard Plastic |
| Belt Length | 3m or 4m Options |

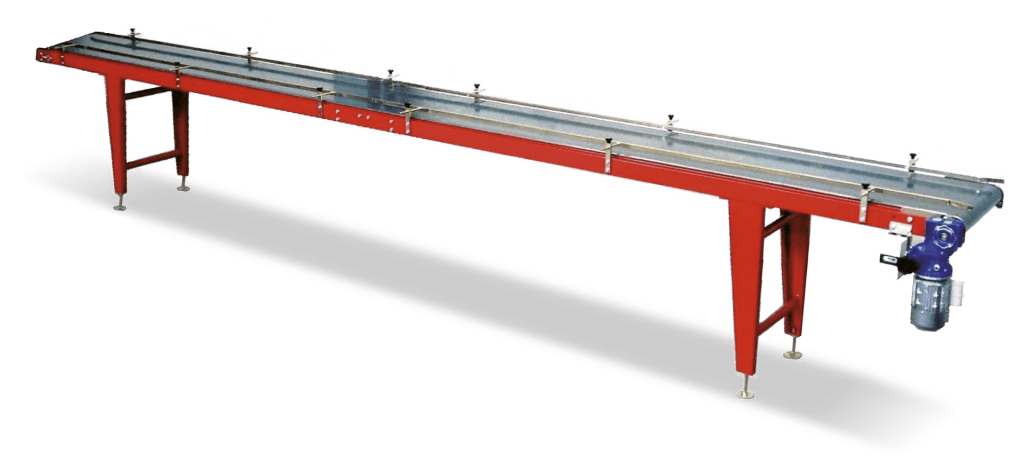

Conveyor Belt N11M
The N11M is a robust, modular conveyor belt system. It is designed for the reliable transport of trays and containers between different nursery automation units. Speed is fully adjustable via the control panel.
| Type | Modular Aluminum Frame |
| Adjustment | Variable Speed Control |
| Utility | Inter-unit Connectivity |
| Installed power | 0,18-0,55 kW |
| Dimensions | 500x1200-6000 mm |

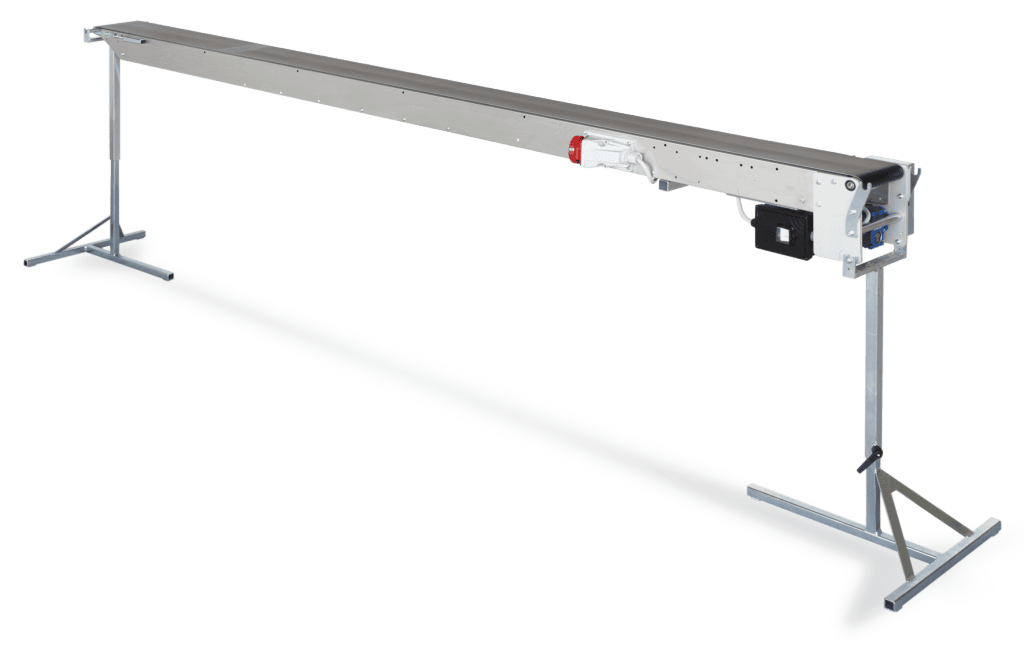

Conveyor Belt N11M-F
The N11M-F is a specialized version of the N11M series, featuring a specific frame and belt configuration designed for heavier loads or complex integration requirements within larger automation systems.
| Series | F-Series Heavy Duty |
| Feature | Enhanced Load Bearing |
| Integration | Seeding & Filling Lines |
| Installed power | 0,18 kW |
| Dimensions | 500x3000-6000 mm |
Tray Washer LAV

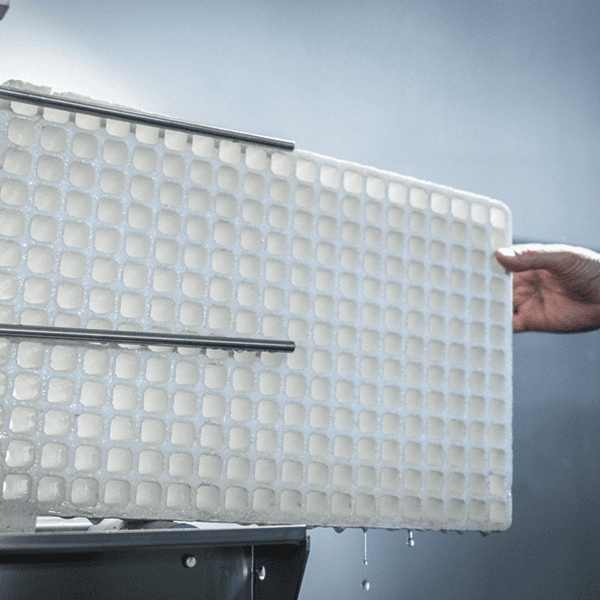

Tray Washer LAV
The LAV tray washer is designed for the automatic washing of trays and containers. It ensures thorough cleaning and disinfection, which is critical for maintaining hygiene standards in nursery production and preventing the spread of soil-borne diseases.
| Features | High-Pressure Nozzles |
| Efficiency | Adjustable Throughput |
| Maintenance | Easy Access Filters |
| Working Speed | 400 Tray/Hour |
| Tray Dimensions | 470 x 700 x 120 mm |
| Installed Power | 5 kW |
| Weight | 200 kg |
| Dimensions | 4,200 x 900 mm |
Watch Machine in Action:

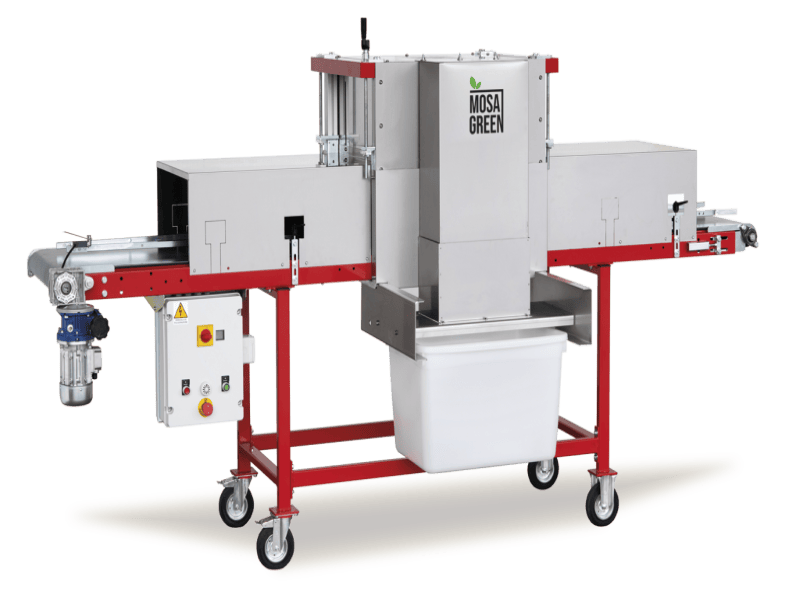

Tray Trimmer C20L
Tray Trimmer C20L
The C20L Trimming Machine is designed for high-precision height management of seedlings. By uniformly trimming the tops of the plants, the C20L promotes lateral growth and creates sturdier, more uniform crops. It is easily adjustable for different plant heights and tray speeds, making it an essential tool for maintaining quality control across large-scale nursery productions.
| Application | Seedling Height Management |
| Blade Type | High-Speed Precision Blade |
| Working Speed | 1200 Trays/Hour |
| Cutting height (min-max) | 50 - 250 mm |
| Tray Dimensions (max) | 400 x 700 mm |
| Installed power | 3 kW |
| Weight | 315 kg |
| Dimensions | 3,000 x 1,100 mm |

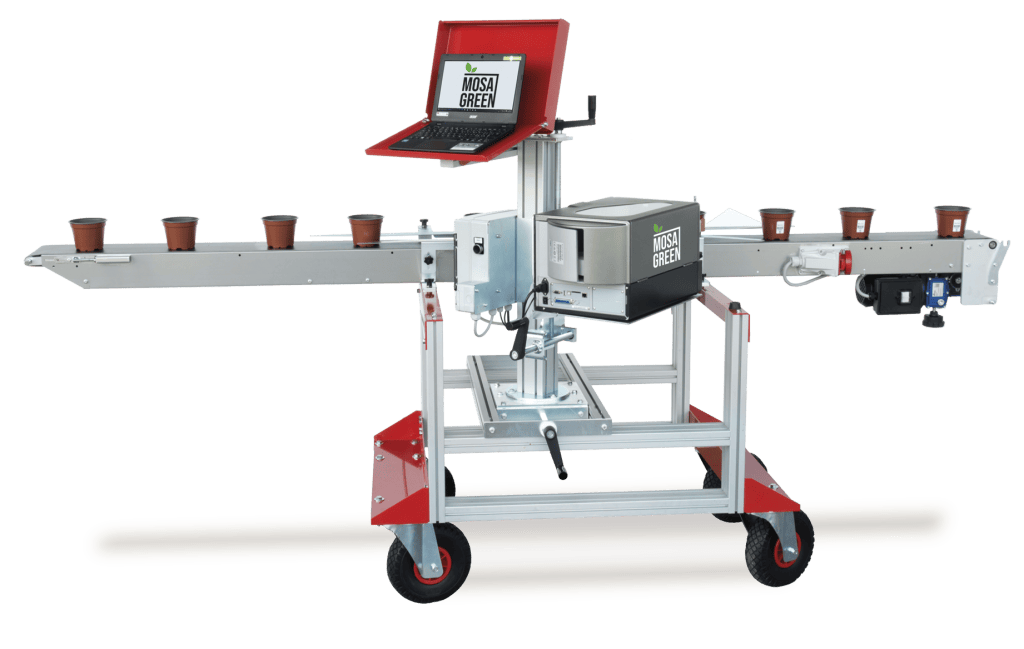

Labelling Unit E12D
Labelling Unit E12D
The E12D is an automatic printing and labelling machine designed for single pots or trays on a conveyor. It is equipped with a PC and dedicated software for complete management of customized labels, allowing for high-precision placement and variable data printing. It integrates seamlessly into existing production lines to automate inventory tracking and product identification.
| Application | For Trays and Pots |
| Capacity | 500 to 4,000 labels/hour |
| Label Dimensions | 15x35 mm to 40x100 mm |
| Conveyor Speed | Adjustable 3 to 6 m/min |
| Control | PC with Dedicated Software |
| Technical data | E12D-Pot and E12D-Tray |
| Installed power | 0.5 kW |
| Weight | 170(E12D-Pot) 120(E12D-Tray) Kg |
Pneumatic Extractor EX-P
Electric Extractor EX-E

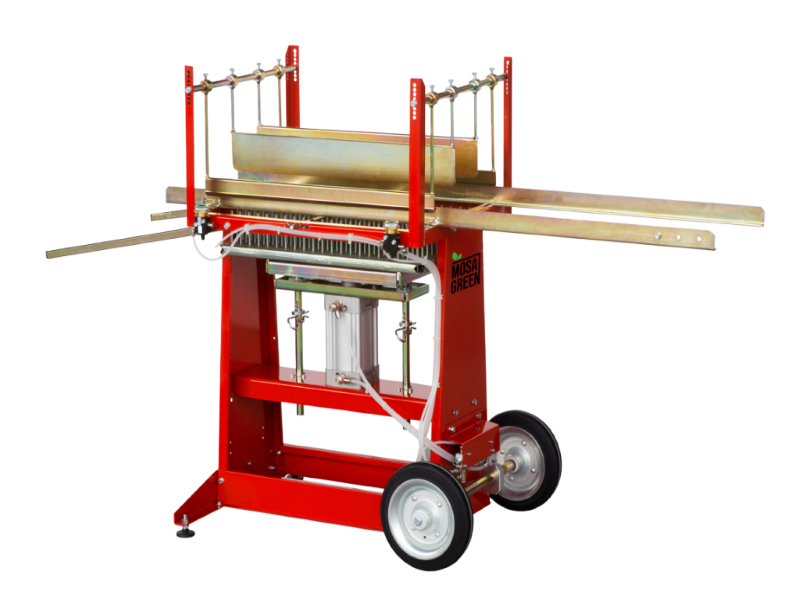

Pneumatic Extractor EX-P
The EX-P pneumatic extractor is a simple and easy-to-use unit designed for extracting seedlings from Styrofoam, hard plastic and solid thermoformed containers. It is equipped with a custom-designed extraction peg plate that is tailor-made to perfectly match the specific container being used.
| Power Source | Pneumatic |
| Plate Type | Custom Peg Plate |
| Compatibility | Styrofoam, Hard Plastic, Thermoformed |

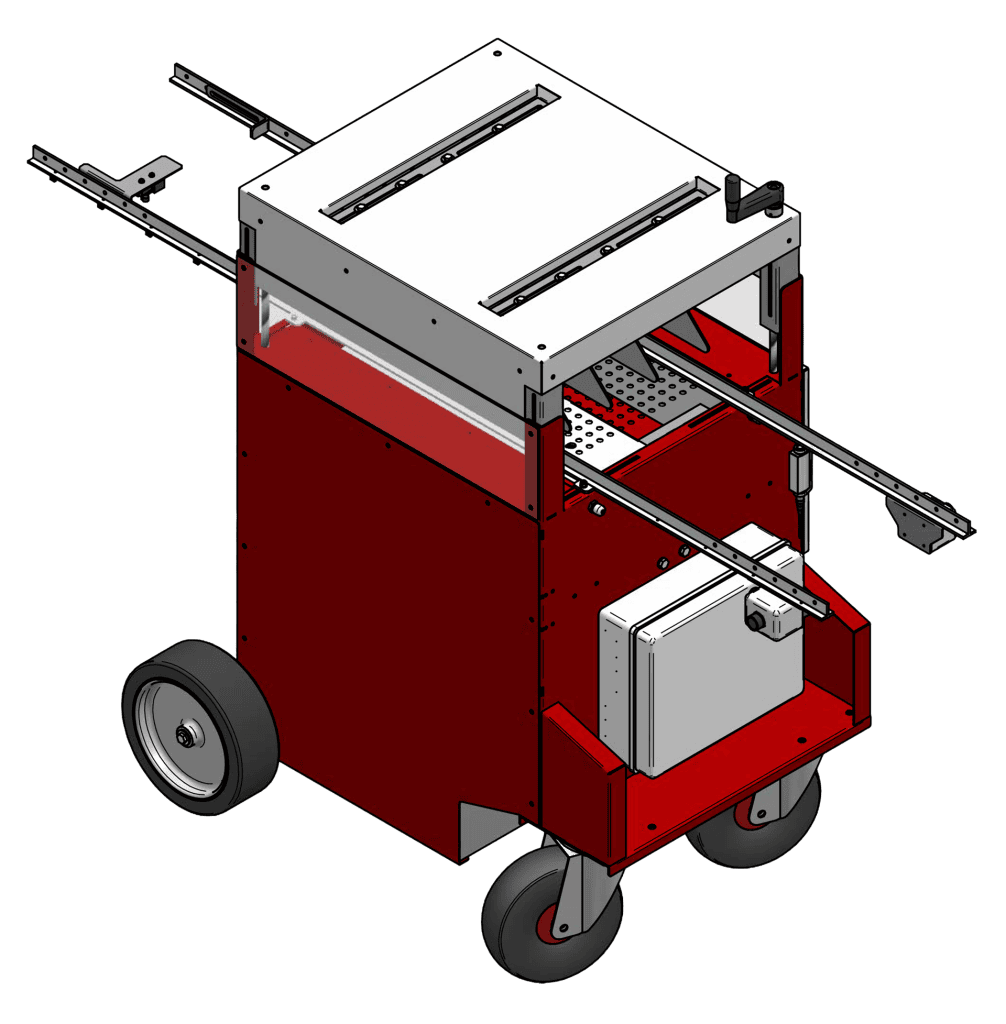

Electric Extractor EX-E
The EX-E electric extractor is a simple and easy-to-use unit designed for extracting seedlings from Styrofoam, hard plastic and solid thermoformed containers. It is equipped with a custom-designed extraction peg plate that is tailor-made to perfectly match the specific container being used.
| Power Source | Electric |
| Plate Type | Custom Peg Plate |
| Container Types | Styrofoam, Hard Plastic, Solid Thermoformed |
Tray Stacker AC
Tray Stacker ACR/ACRT
Tray Stacker AC
The AC Stacker is a programmable unit used for the final accumulation of containers at the end of a production line. It is designed to neatly stack trays to a pre-set height, significantly reducing the manual labor required and facilitating the easy removal and transport of finished products. It is highly adaptable to different tray materials and weights.
| Operation | Programmable Automatic |
| Function | End-of-line Accumulation |
| Main Benefit | Labour Reduction & Orderly Stacking |

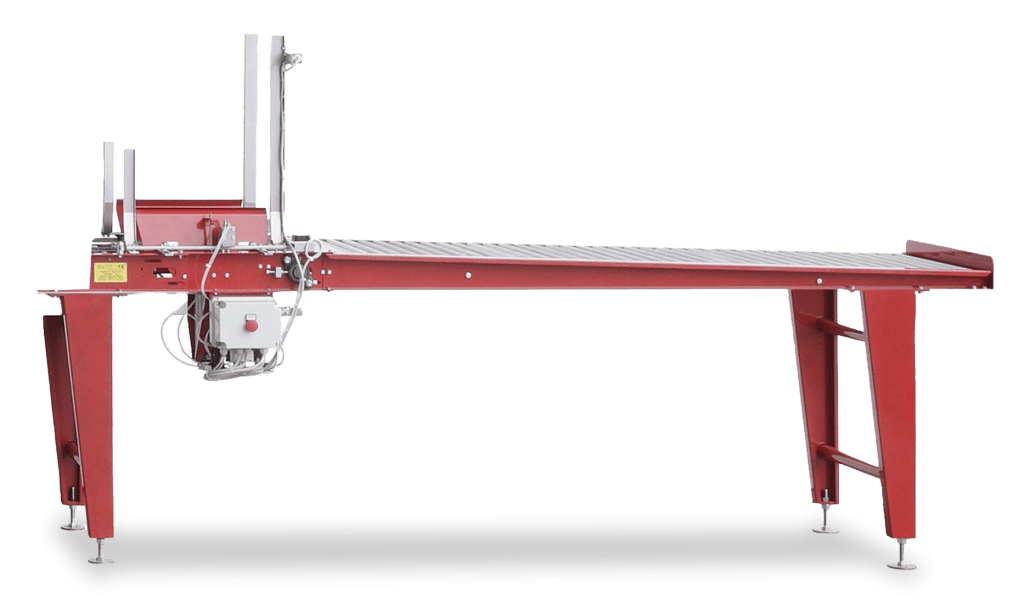

Tray Stacker ACR/ACRT
The ACR and ACRT series are advanced stacking solutions designed for high-capacity nursery operations. These units offer enhanced speed and precision, specifically engineered to handle complex tray movements or higher throughput volumes. The ACRT version often includes additional sensors or transport features for integration into fully automated large-scale systems.
| Type | High-Capacity Stacking |
| Integration | Full Automation Compatible |
| Key Features | Enhanced Speed & Precision Control |
Tray De-stacker D12D
Pot De-stacker D14G
De-stacker with Labeller E11D
Automatic De-stacker DC-1
Automatic De-stacker DC-6
Automatic De-stacker DC-3
Automatic De-stacker DC-8
Palletiser APS23
Tray De-stacker D12D
The D12D is an automatic de-stacker designed to separate and feed trays into the production line. It is highly adjustable to accommodate various tray shapes and materials, ensuring a smooth and continuous workflow.
| Type | Pneumatic De-stacker |
| Compatibility | Polystyrene & Rigid Plastic |
| Production rate | 600 Trays/Hour |
| Installed power | 1,5 kW |
| Air consuption (max) | 250 l/min |
| Weight | 550 kg |
| Dimensions | 3080x1000 mm |

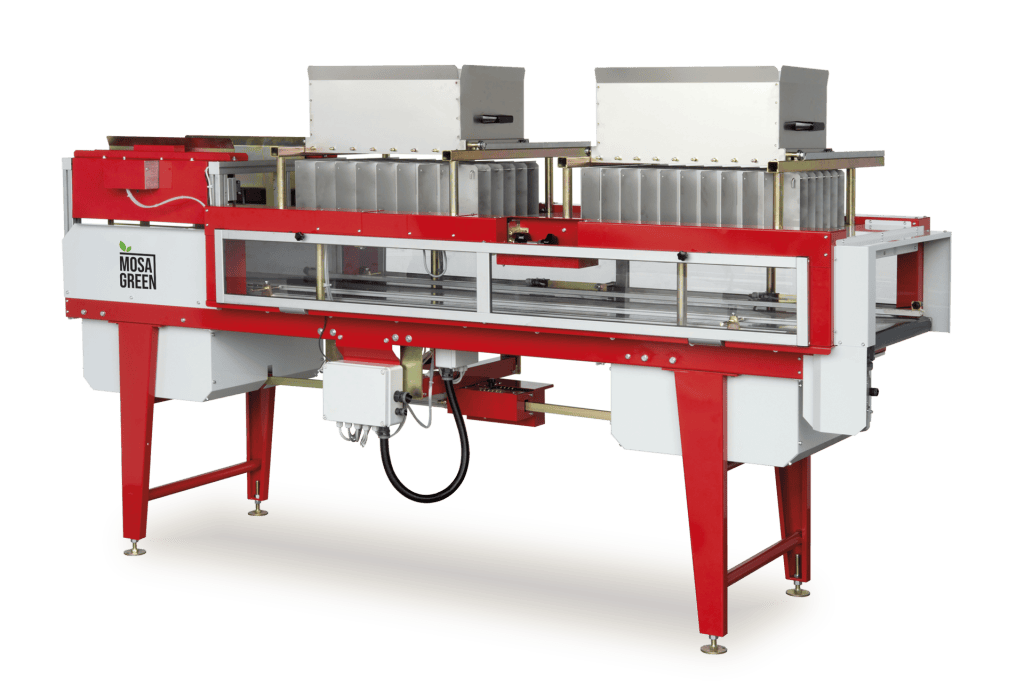

Pot De-stacker D14G
The D14G is specifically engineered for the high-speed de-stacking of round or square pots. It can be integrated directly into pot filling lines or used as a standalone unit to feed pot-holders.
| Production rate | 200-500 Trays/Hour |
| Installed power | 0,75 kW |
| Air consuption (max) | 38 l/min |
| Weight | 350 kg |
| Dimensions | 3100x1100 mm |
De-stacker with Labelling Unit E11D
The E11D combines the tray de-stacking process with an integrated labelling or printing unit. This allows for trays to be identified and tagged immediately as they enter the production cycle, saving floor space and labour.
| Production rate | 600 Trays/Hour |
| Installed power | 1,5 kW |
| Air consuption (max) | 250 l/min |
| Weight | 550 kg |
| Dimensions | 3085x1500 mm |

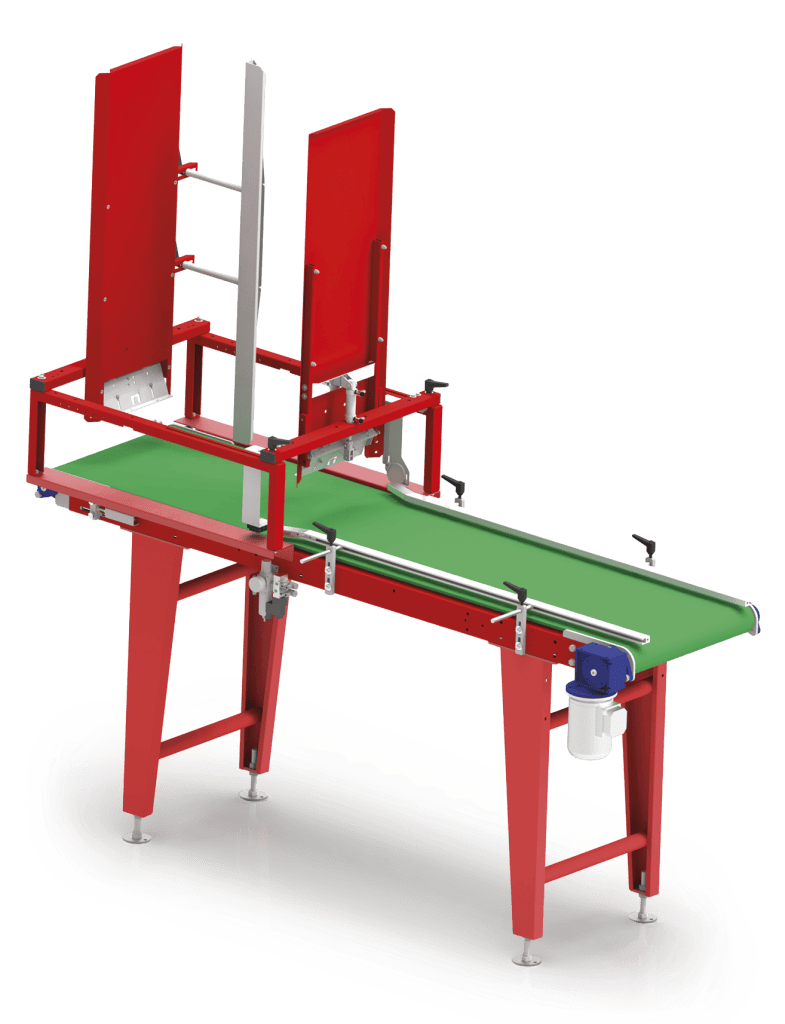

Automatic De-stacker DC-1
The DC-1 is a simple and easy-to-use unit designed for extracting and separating seedlings from Styrofoam, hard plastic, and solid thermoformed containers. It uses a custom peg plate to perfectly match your specific container.
| Style | Pneumatic Extraction |
| Tray Material | Styrofoam/Hard Plastic |

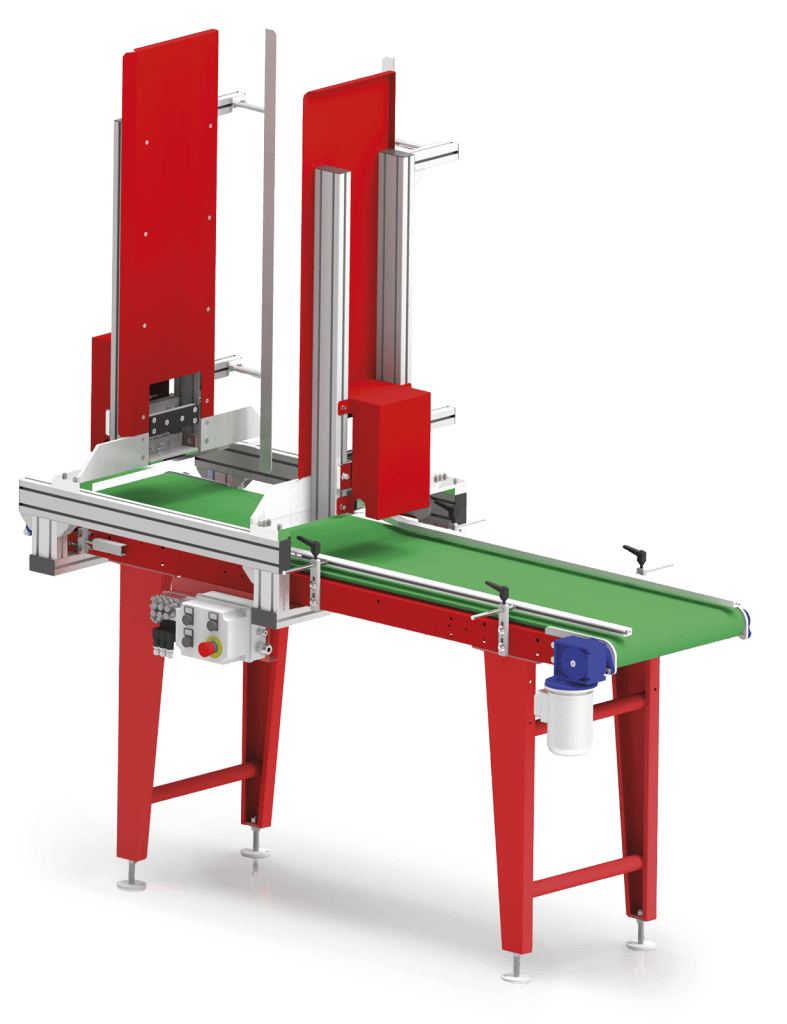

Automatic De-stacker DC-6
The DC-6 is the electric version of Mosa's versatile extractor series. Designed for ease of use, it provides consistent pressure to remove plugs safely without damaging root systems. Ideal for rigid tray systems.
| Style | Electric Extraction |
| Precision | Tailor-made extraction plates |

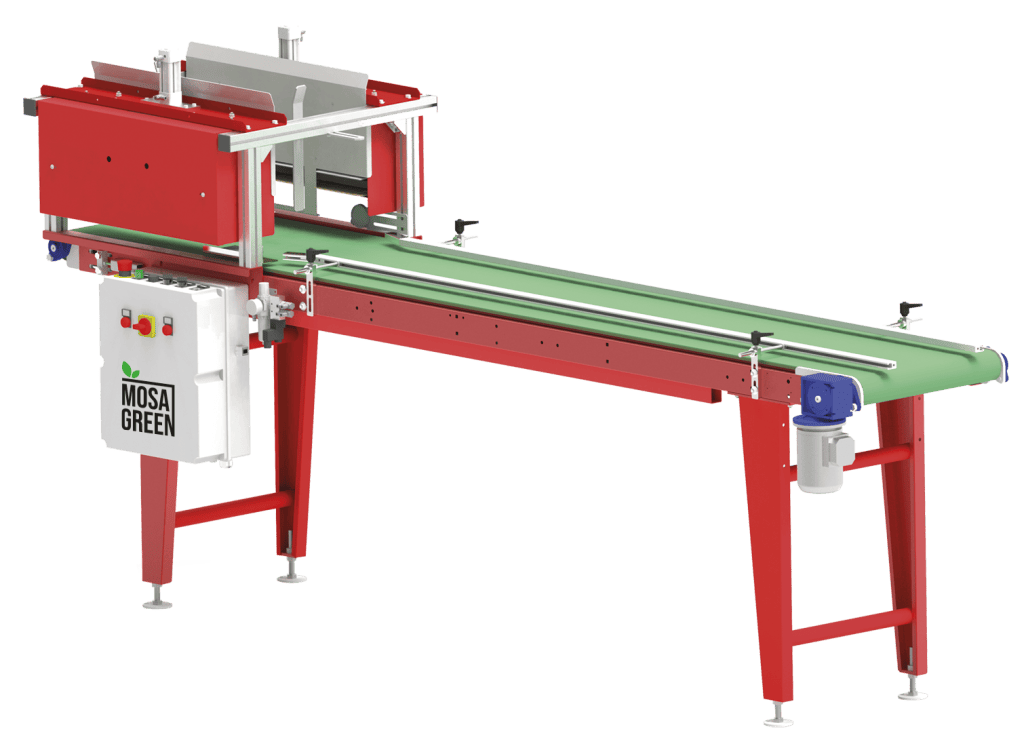

Automatic De-stacker DC-3
A heavy-duty de-stacking unit designed for larger nursery formats. The DC-3 offers increased stability and power for deep-cell trays or heavier rigid containers used in forestry and native plant nurseries.
| Focus | Heavy-duty / Deep cell |
| Versatility | Adjustable for different heights |

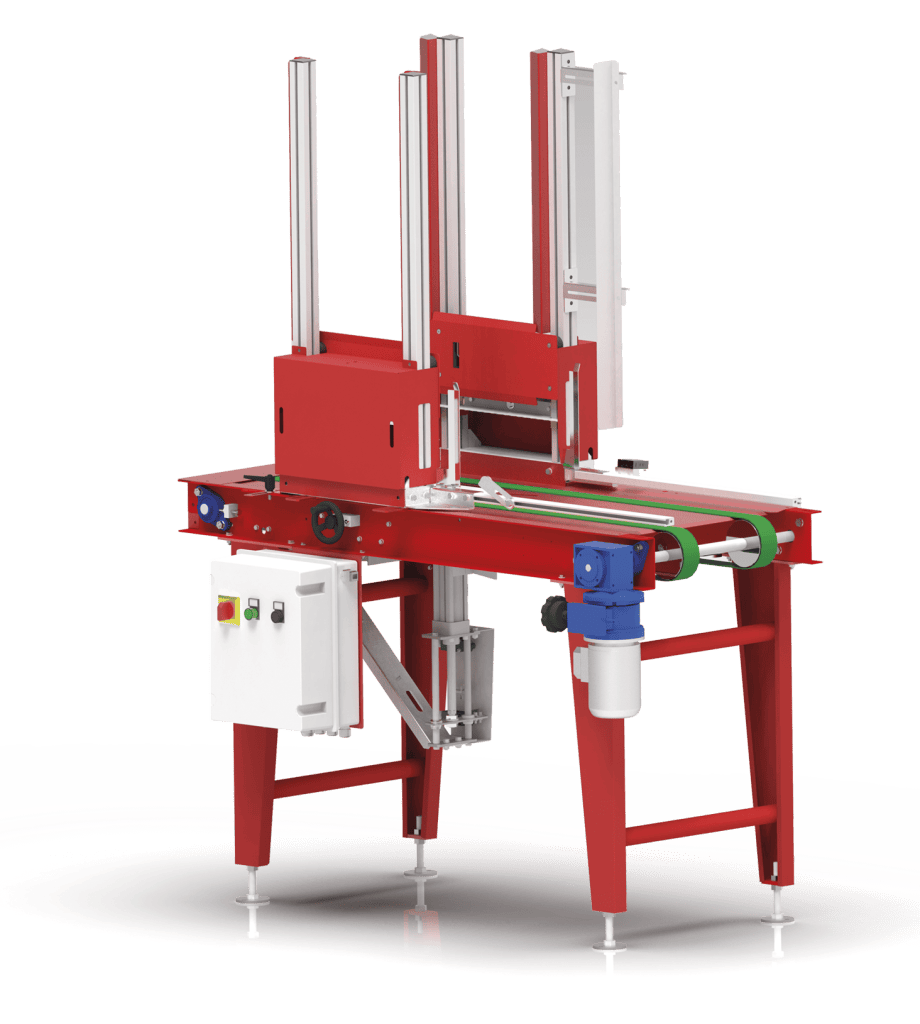

Automatic De-stacker DC-8
The top-tier in the DC series, the DC-8 is built for maximum throughput. It features advanced sensor technology to ensure no tray skips occur, keeping high-speed filling lines running at 100% capacity.
| Throughput | Max High Speed |
| Control | Integrated sensor feedback |

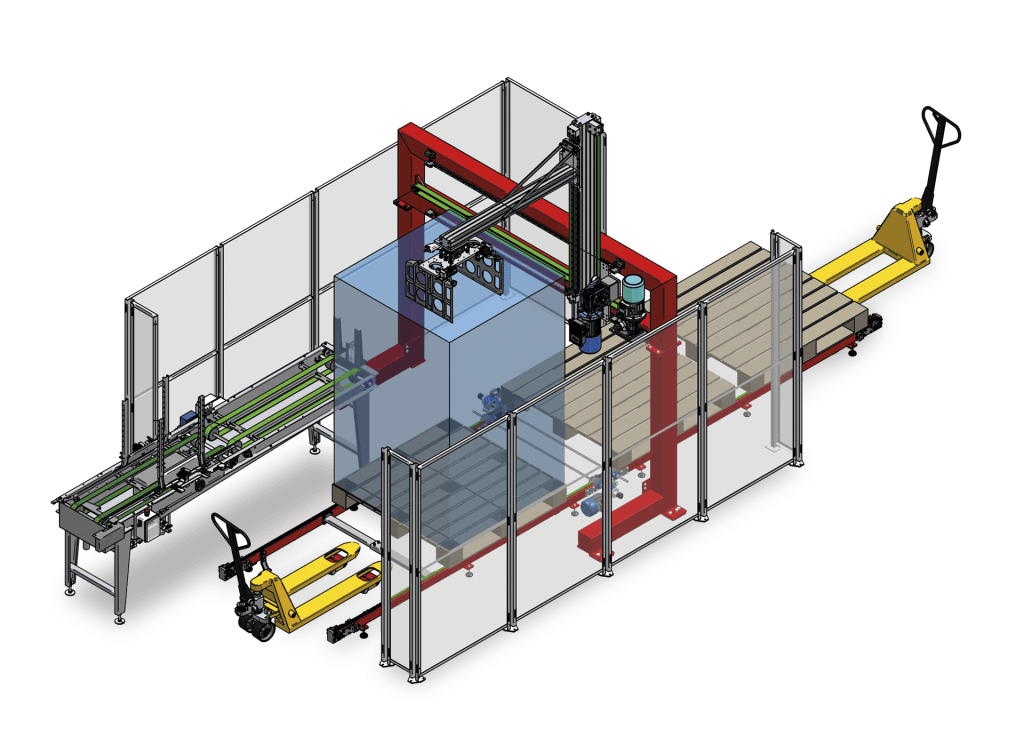

Palletiser APS23
The APS23 is an automatic palletising system that takes stacked trays and organizes them onto pallets for shipping. It is the final piece of the automation puzzle, removing the back-breaking work of manual pallet loading.
| Function | Automatic Palletising |
| Labor Saving | Eliminates manual lifting |
