Sfoggia Calibra EVO

Pneumatic Precision Seeding

×

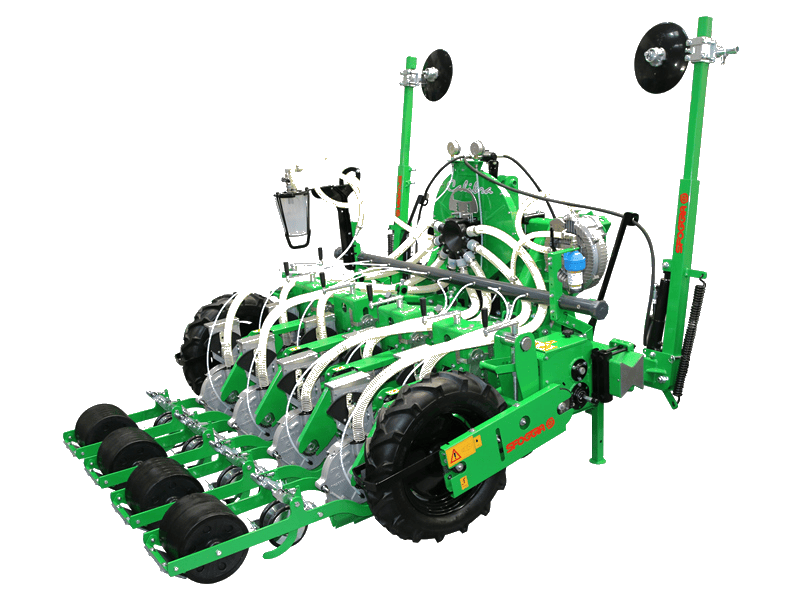

Sfoggia Calibra

The Sfoggia Calibra (Calibra EVO) is a pneumatic vacuum precision seeder engineered for accurate sowing of small seeds. It is a versatile machine designed to meet the rigorous demands of specialized agriculture, including both open-field and greenhouse applications.

Target Crops: Fine Vegetable Seeds (e.g., carrot, onion, leek, lettuce, celery), Sugar Beet, and similar small-diameter coated or bare seeds.

Versatile Seeding Unit: Each individual seeding unit can be quickly adapted to sow one, two, or three lines simultaneously within a single row or bed pass. This is achieved by simply exchanging the sowing disc and the planting shoe. The large-diameter seeding disc increases the distance between the vacuum holes, which improves planting precision and minimizes the risk of double seeding.

Dual Air System: Utilizes a sophisticated, filtered air system to ensure consistent performance. The Vacuum holds seeds precisely on the disc, while the Pressure Unit provides constant pressure to keep the disc holes clear of debris, ensuring a dry, clean operating environment.

Standard Models2 to 24 rows
Frame OptionsFixed, Telescopic, or Hydraulic Folding
Seeding Adaptability1, 2, or 3 lines per unit
ApplicationsOpen-field and Greenhouse
📄 Download Calibra Tech PDF

Click to view gallery

Sfoggia

SFOGGIA.PDF

The Sfoggia Legacy: Precision Since 1956



 Sfoggia is not just a manufacturer; it is a specialized partner to growers, built on decades of Italian engineering and agricultural passion.

  • Founded in 1956: specializing in the design and production of seeders and transplanters.

  • Italian: Based in Montebelluna, Italy,

  • Core Focus: While they offer precision planters (like the Sigma 5 for maize/soya) and strip-till cultivators, their identity is deeply rooted in transplanting machinery and the related machinery like mulch layers and inter-row cultivators

  • Why Choose Sfoggia?

  • When you invest in Sfoggia, you are investing in proven reliability and forward-thinking technology.
    • Built with robust, high-quality materials. The F-series transplanters, for example, feature stainless steel components for durability.
    • Equipment is designed to handle an enormous range of planting types—from bare-root to cell grown plugs
    • Fast, easy adjustments between crops.
    • Offering Elektra Drive with full IsoBus integration for total electronic management and data control.
Fertiliser

FHS Front Hopper

Thema NS

Thema VG

×

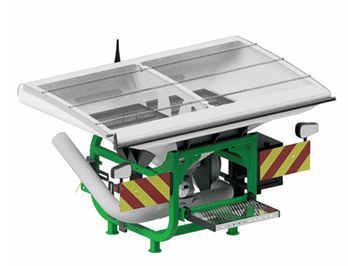

FHS Front Fertiliser Hopper

The FHS is a high-performance front-mounted hopper designed to optimize tractor balance and increase field efficiency. By moving the weight of the fertiliser to the front linkage, it reduces soil compaction at the rear and improves traction. This unit is essential for large-scale operations requiring high-capacity distribution during planting.

Hopper Capacity1250L Standard / 1900L Extended
Metering System12V Electric Motor
Fan DriveHydraulic (requires 40L/min)
×

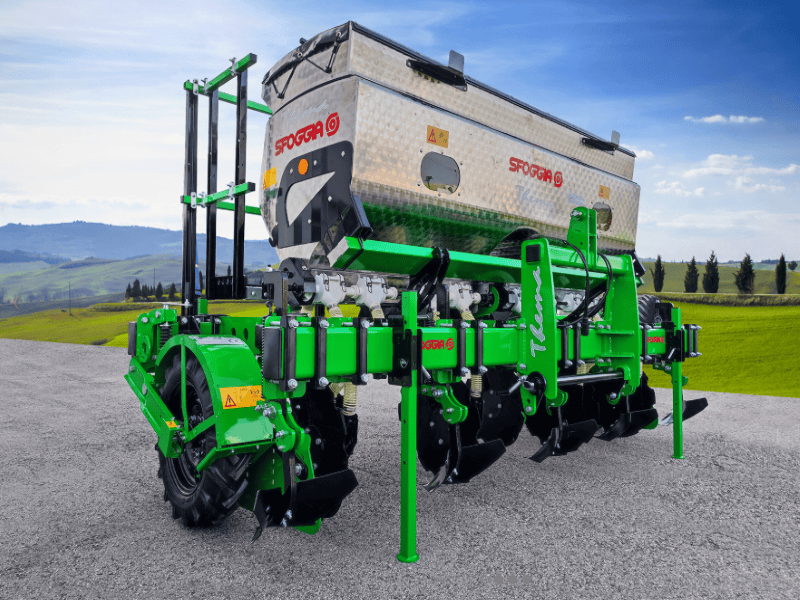

Thema NS Volumetric Spreader

The Thema NS is a precision volumetric spreader for inter-row fertilisation. It is highly customizable, built with corrosion-resistant PVC hoppers or a high-capacity stainless steel box.

Metering TypeAdjustable Volumetric Rollers
Row Configuration2, 4, 6, or 8 Row setups
×

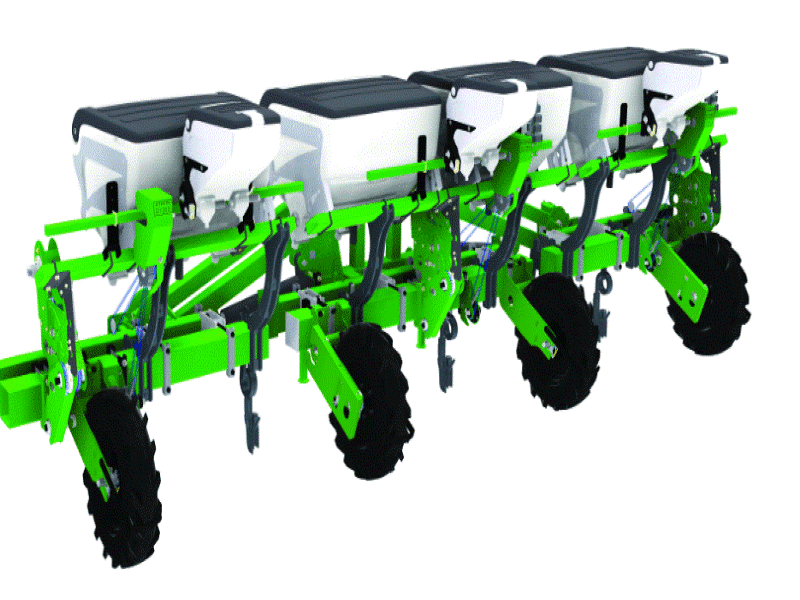

Thema VG Deep-Placement Applicator

The Thema VG specializes in deep-placement of fertiliser directly into the soil root zone using heavy-duty spring-tine coulters.

Placement SystemSub-soil Spring-Tine Coulters
Tank Capacity930 Litre Stainless Steel Box
Transplanter

ST9

View Details

ST11

View Details

F10-C10

View Details

F12-C12

View Details

F18-C18

View Details

California

View Details

Florida

View Details

Itala

View Details

STP

View Details

Mulch Layer

View Details

×

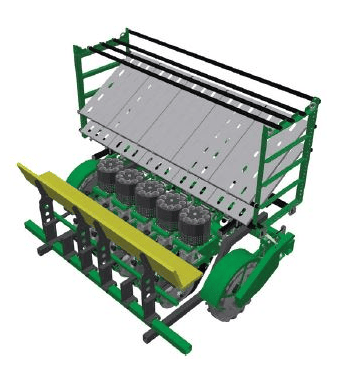

Sfoggia ST9 Transplanter

The Sfoggia ST9 is a semi-automatic transplanting machine designed for high-speed, close-spacing transplanting of vegetable seedlings. The Sfoggia ST9 will work with a minimum 30 cm row spacing. The plant carousel has 9 cups and the rotation of the carousel is stepped to keep the plant stable on plant release but maintain a high planting speed. Production is up to 5500 plants per hour for each row. It is recommended for transplanting vegetable seedlings, tomatoes, cabbages and lettuces etc.

Hourly Yield5,500 plants/row
Min Row Spacing30 cm

Click for more photos

×

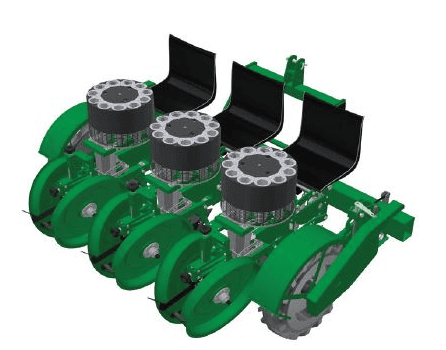

Sfoggia ST11 Transplanter

The Sfoggia ST11 is a semi-automatic transplanting machine for transplanting on beds or flat land. The Sfoggia ST11 will work with a minimum 45 cm row spacing. The plant carousel has 11 cups and the rotation of the carousel is stepped to keep the plant stable while the seedling is released to maintain a high planting speed. Production is up to 5500 plants per hour per row. It is recommended for transplanting vegetable seedlings, tomatoes, cabbages and lettuces etc.

Min Row Spacing45 cm
Carousel11 Cups
×

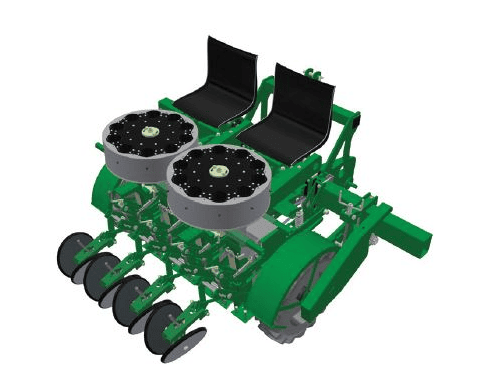

Sfoggia F10-C10

The Sfoggia F-12/C-12 semi-automatic transplanters require one operator to plant two rows, achieving a production rate of 7,000 plants per unit per hour. Key features include independent rows and carousels with 12 cups. Each operator feeds one carousel, which transplants two rows. The Sfoggia F-12 model features a stainless steel plant-falling pipe, while the Sfoggia C-12 model comes with a standard painted plant-falling pipe. Both versions include a rear guillotine as a standard feature. Easy adjustment of row distances, ranging from 40 to 70 cm, helps reduce planting crew sizes. They are commonly used for transplanting wide ranges of vegetable crops..

Yield7,000 plants/unit
Operator Setup1 Op / 2 Rows
×

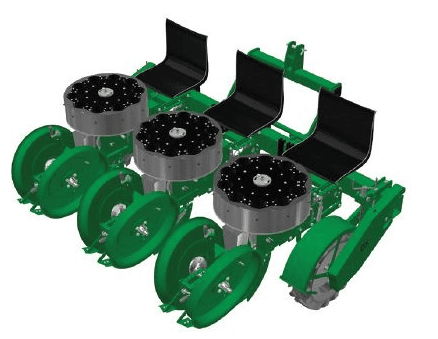

Sfoggia F12-C12

The Sfoggia F-12/C-12 semi-automatic transplanters require one operator to plant two rows, achieving a production rate of 7,000 plants per unit per hour. Key features include independent rows and carousels with 12 cups. Each operator feeds one carousel, which transplants two rows. The Sfoggia F-12 model features a stainless steel plant-falling pipe, while the Sfoggia C-12 model comes with a standard painted plant-falling pipe. Both versions include a rear guillotine as a standard feature. Easy adjustment of row distances, ranging from 40 to 70 cm, helps reduce planting crew sizes. They are commonly used for transplanting wide ranges of vegetable crops.

Row Adjustment40 - 70 cm
Carousel12 Cups
×

Sfoggia F18-C18

The Sfoggia F-18/C-18 Transplanter is a semi-automatic transplanter designed for efficiency, requiring only one operator to plant two rows at a rate of approximately 7,000 plants per hour per unit. It features independent rows and a single carousel with 18 cups, where the operator feeds the carousel to transplant both rows simultaneously. The Sfoggia F-18 version includes a stainless steel large plant falling pipe, while the Sfoggia C-18 version uses a standard painted plant falling pipe. Both models come standard with a rear guillotine and offer easy row distance adjustment from 60 to 120 cm. These transplanters are commonly used for a wide variety of vegetable seedlings.

Row Adjustment60 - 120 cm
Carousel18 Cups
×

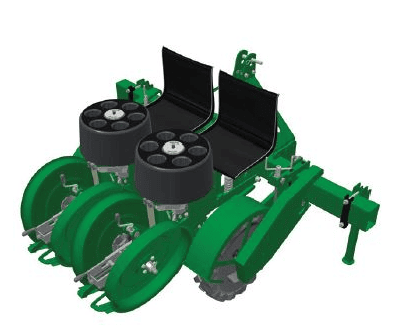

Sfoggia California

The Sfoggia California Transplanter is designed for planting seedlings grown in cell trays, offering a production rate of up to 4,000 plants per hour per unit. Each planting unit operates independently and features a PVC carousel with six cups. There are two versions available: the STM, which has a single toolbar, and the STDM, which includes a double toolbar. It is commonly used for transplanting vegetable seedlings.

Min Row25 cm
Carousel TypeHorizontal
×

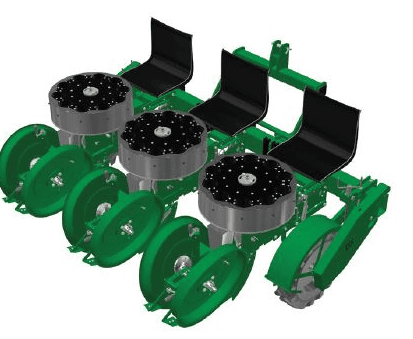

Sfoggia Florida

The Sfoggia Florida Transplanter, is ideal for planting seedlings grown in cell trays. Key features of the Florida Transplanter include: Independent Planting Units, Each unit is attached to the toolbar with a parallelogram, ensuring consistent planting depth even on uneven ground. High Production Rate, Carousel available 6 or 10 cups. The 6-cup model production rate is up to 4,000 plants per hour per unit, while the 10-cup model can reach 6,000 plants per hour per unit. On a single toolbar the minimum row distance is 45 cm. On a double toolbar, minimum row distance is 25 cm..

Carousel TypeVertical
Soil TypeLoose / Sandy
×

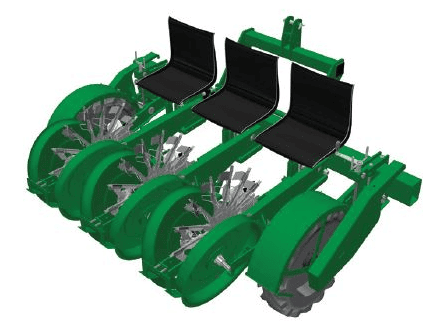

Sfoggia Itala

The Sfoggia Itala Transplanter is an excellent choice for precise planting of various vegetable and nursery plants, including bare-root or small cell plants. Its production rate is approximately 1500-2000 plants per unit, per hour. Operators manually place plants into the clips on a distributing chain, which then accurately deposits them into the furrow at your desired spacing and depth. The Itala is commonly used for transplanting plants such as lettuce, salad greens, tomatoes, and cabbage, but it can also accommodate small shrubs or tree seedlings.

SystemGrippers
PlantsBare-root / Leeks
×

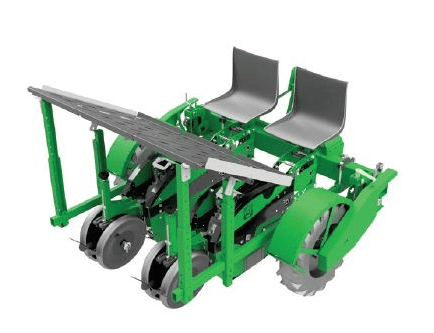

Sfoggia STP

The Sfoggia STP is a semi-automatic transplanter designed for cell tray-grown seedlings. It is ideal for planting through plastic or paper-covered soil. The transplanter utilizes aluminum cups to pierce the plastic, followed by rear rubber compression wheels that firmly press the seedling into the soil. Common applications include transplanting seedlings from cell trays, such as lettuce, watermelons, tomatoes, and cabbages, or any crops you want to plant into mulch film.

SystemPneumatic Beaks
SurfaceMulch or Bare
×

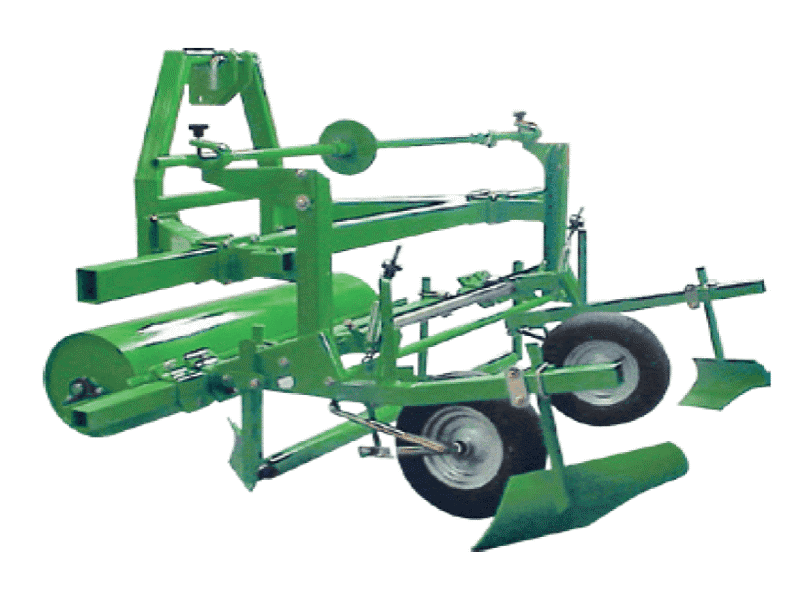

Sfoggia Mulch Layer

The Sfoggia Mulching Machine is designed for laying down plastic or paper film, offering flexibility in its configuration with or without a front roller and rear rubber wheels It can be adjusted to accommodate different roller sizes. Additionally, it can be paired with the Sfoggia Plantec One Transplanting Machine to plant through the mulch, while laying it. The machine is available in three widths: 1.40 m, 1.90 m, and 2.10 m, and is suitable for use on various soil types, including flat terrain or beds up to 30 cm high. It can accommodate different types of mulch film, plastic, bio-plastic or paper mulch.

Film WidthUp to 1900 mm
Edge BurialAdjustable Disks
Sigma

Sigma 5

Air

Gamma Plus

Vento Smart

Sigma King

Sigma HWS

Sigma RT8

Sigma RIU

×

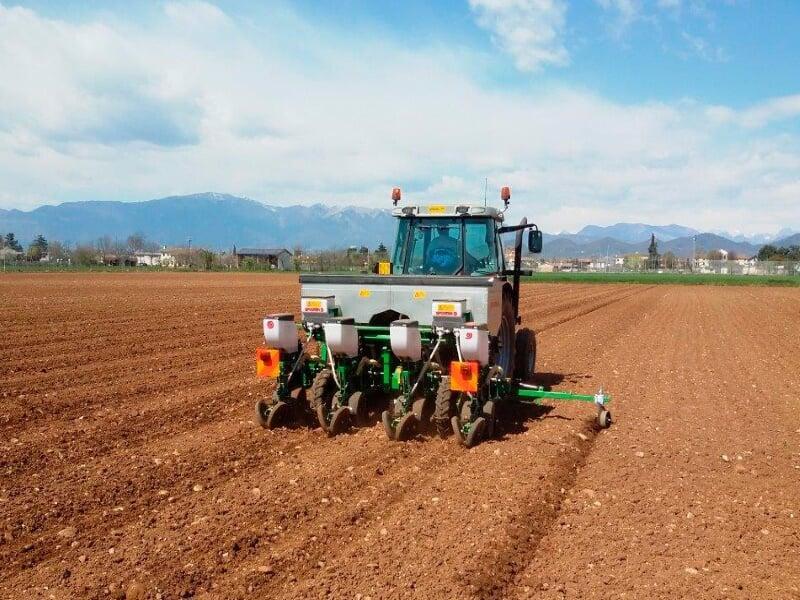

Sigma 5 Precision Seeder

The Sigma 5 utilizes a seeding system with double discs and dual leveling wheels to maintain constant sowing depth even in challenging conditions. It is suitable for a wide range of crops including corn, soybeans, sunflowers, and vegetables.

Operating Speed10-12 km/h
Seeding SystemDouble discs with dual leveling wheels
TransmissionUniversal joint or double chain
Frame OptionsFixed, Telescopic, or Hydraulic Folding
×

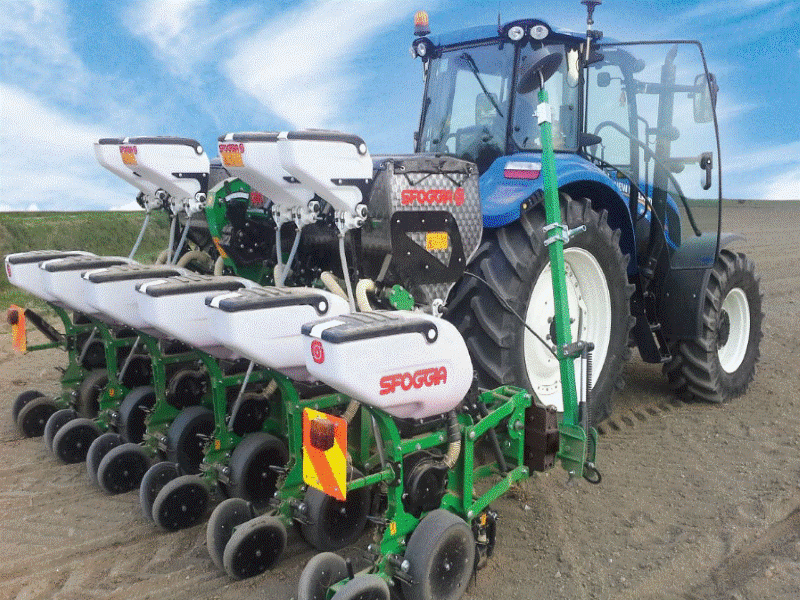

Sfoggia Air Precision Planter

The Air is a versatile precision planter featuring an innovative single-beam telescopic frame. It allows for easy adjustment of inter-row spacing by replacing simple tie rods, making it adaptable to various planting needs.

Transport Width2.5 Meters
Frame DesignTelescopic Single-Beam
Drive SystemOptional Elektra Drive System
Configurations8-9 rows available
×

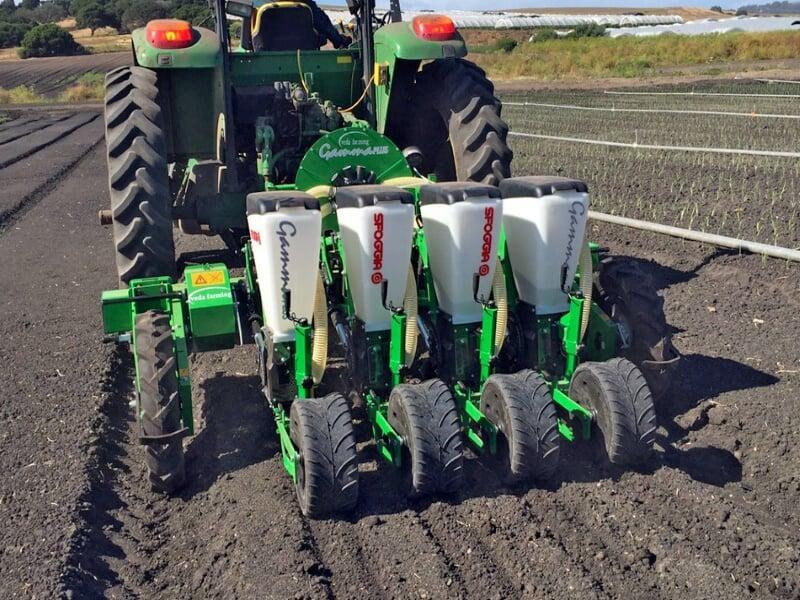

Gamma Plus Pneumatic Seeder

The Gamma Plus is known for its reliability and precision. It features a shoe seeding system where seeds drop only 4cm into the furrow, ensuring highly accurate placement for crops like corn, soy, beet, and sunflower.

Drop Height4cm (Shoe Seeding System)
Max Speed10 km/h
ControlOptional Elektra Drive Electronic Management
CropsCorn, Soy, Beet, Sunflower, Sorghum, Bean
×

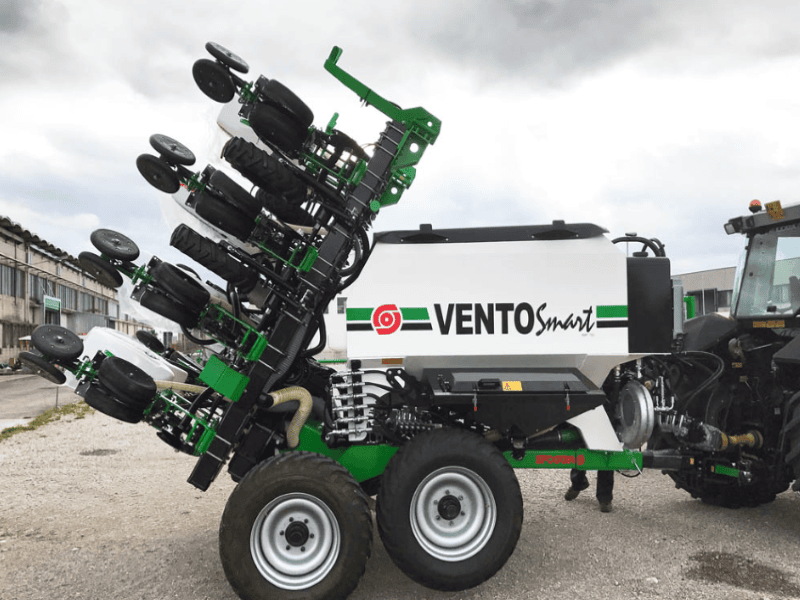

Vento Smart Trailed Drill

The Vento Smart is a versatile trailed pneumatic planter designed for minimum till and no-till practices. It is ISOBUS compatible and can be easily converted into a pneumatic seed drill for small grains.

DesignTrailed for reduced soil compaction
TechnologyISOBUS & GPS Variable-rate compatible
VersatilityConvertible to wheat seeding modules
TransmissionMechanical or Elektra Electric Drive
×

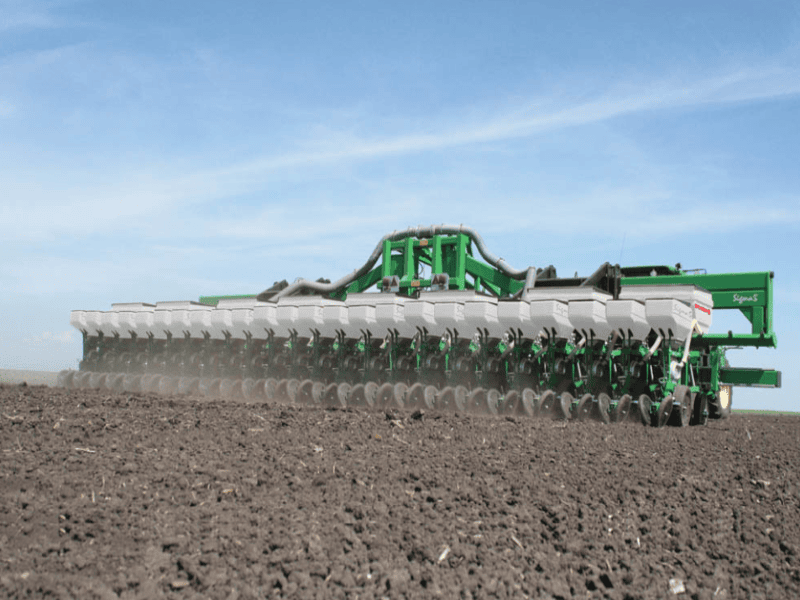

Sigma King High-Capacity Planter

The Sigma King features a robust double frame that is foldable for transport. It is designed for high-speed operation while maintaining consistent depth and spacing, making it ideal for large-scale productivity.

Frame TypeDouble Frame (Hydraulic Folding)
Operating Speed10-12 km/h
AttachmentsFertiliser spreader and microgranulator
SystemOptional Elektra Drive
×

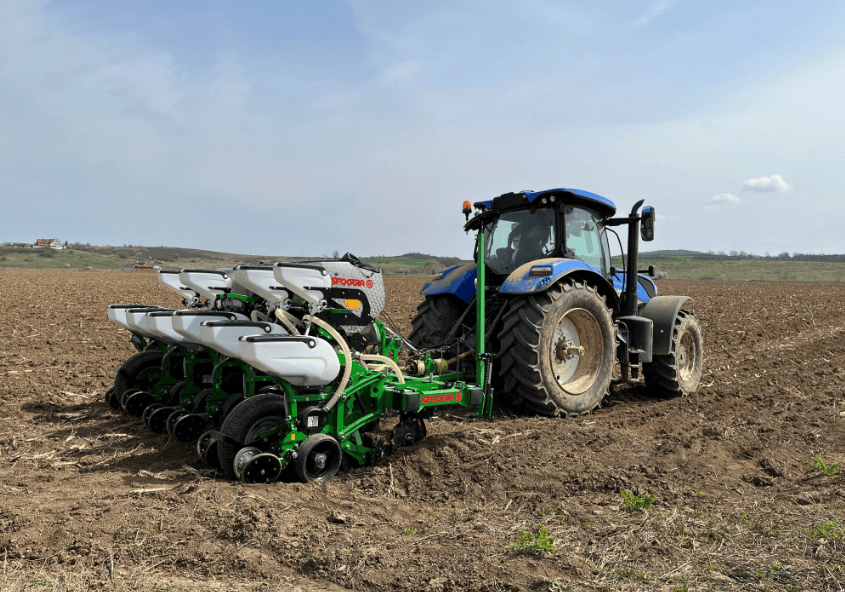

Sigma HWS No-Till Planter

The Sigma HWS is purpose-built for no-till or minimum tillage planting. Its heavy-duty disc openers effectively cut through high crop residue to create a clean seedbed in tough field conditions.

SystemPneumatic with Disc Openers
Residue HandlingHigh-capacity for heavy residue
ManagementELEKTRA DRIVE optional
CropsMaize, Soybeans, Sunflowers, Sorghum
×

Sigma RT8 Trailed Seeder

The RT8 is a large-scale trailed seed drill with a 6m working width. It features a 1500L stainless steel fertiliser spreader and is built for durability in poorly prepared soils or direct seeding situations.

Working Width6.0 Meters
Fertiliser Tank1500L Stainless Steel
Transport Width3.0 Meters (Hydraulic Folding)
Operating SpeedUp to 12 km/h
×

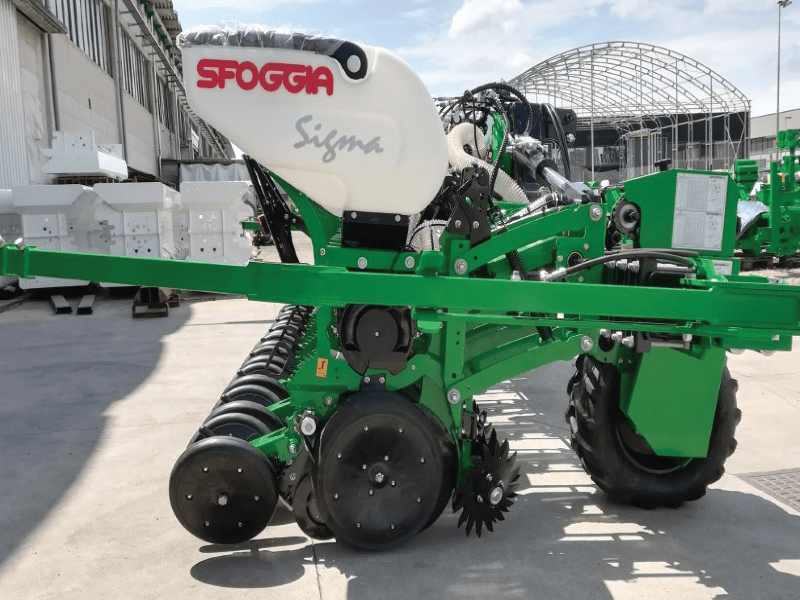

Sigma RIU Inter-row Unit

The Sigma RIU (Reduced Input Use) is a pneumatic precision seeder designed to optimize seed and fertiliser usage. It is highly adaptable, available in various frame configurations to suit different farm layouts.

Unit DesignReduced Input Use (RIU) optimized
ConfigurationsFixed, Telescopic, or Folding frame
ManagementElektra Drive compatible
PerformanceHigh seeding rate capability
Leonardo

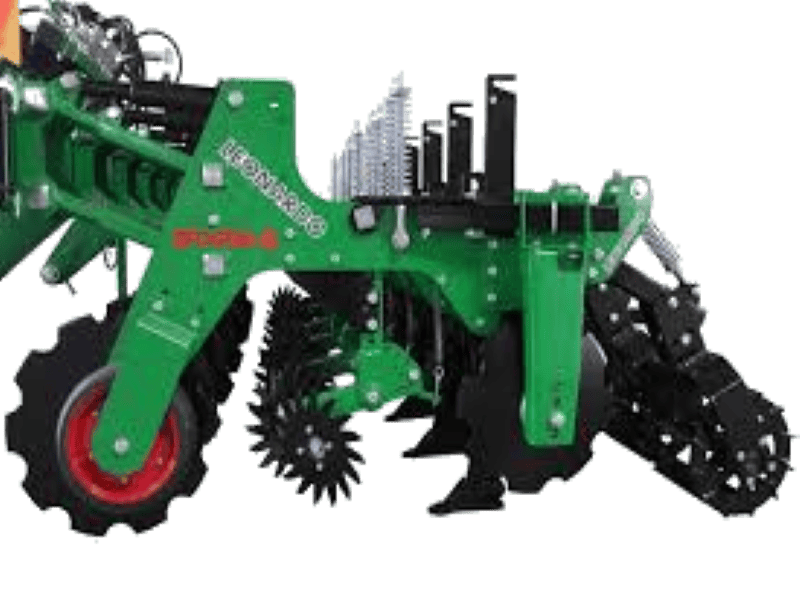

Sfoggia Leonardo

Smart Strip-Till & Guidance

×

Leonardo

Strip Tillage Strategy: The Leonardo cultivates narrow strips for the seedbed while leaving inter-row soil undisturbed. This preserves organic matter, conserves moisture, and allows the soil to warm faster for earlier germination.

Guidance Technology: Equipped with an optical camera vision system and hydraulic side-shift, the Leonardo maintains accuracy within 1cm of the plant row, even at high speeds up to 15 km/h.

Available TechnologyOptical Camera or GPS Guidance
Steering ControlAutomatic Hydraulic Side-Shift
Row Configurations4 to 12 rows (Adjustable 45-80cm)
Working Depth10cm to 25cm
Depth ControlNitrogen-filled pressure cylinders
Operating SpeedUp to 15 km/h with Auto-Steer
Frame OptionsFixed or Hydraulic Folding
📄 Download Leonardo Tech PDF

Click to enlarge image gallery

Cultivator
Cultivator 1

Thema Cultivator

View Details

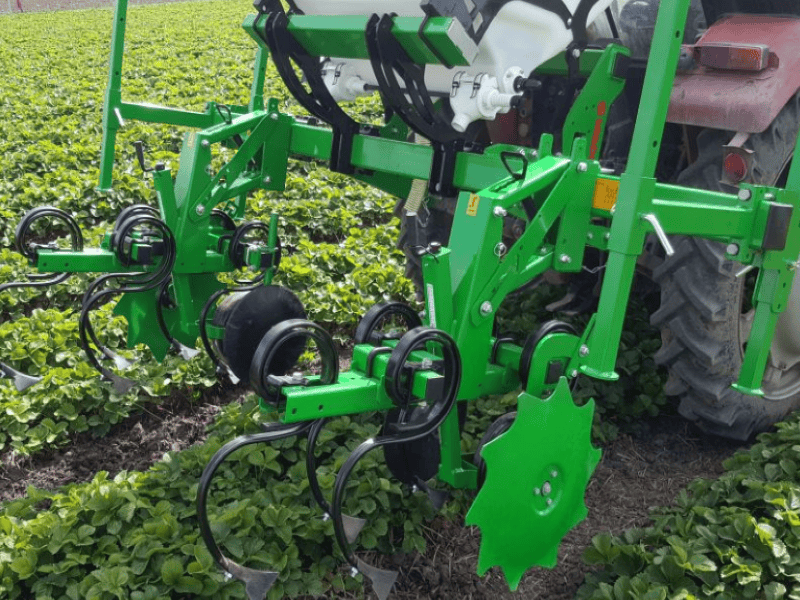

Cultivator 2

Leonardo Cultivator

View Details

×

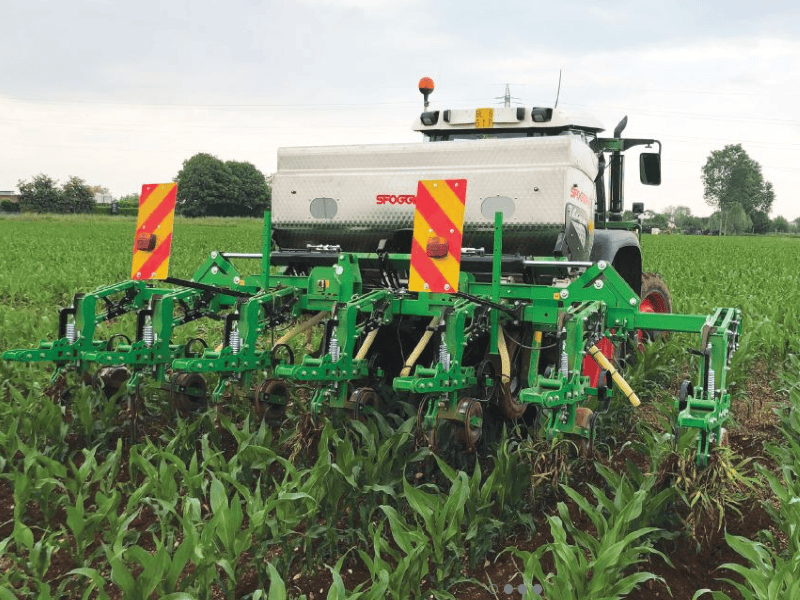

Thema Row-Crop Cultivator

The Thema is a heavy-duty row-crop cultivator designed for precision weed control between rows. It features high ground clearance and various tool options for different soil types.

Frame TypeFixed or Hydraulic Folding
Row Spacing45cm to 75cm adjustable
OptionsFertiliser box & Microgranulator
📄 Download Thema PDF
×

Leonardo Guidance Cultivator

The Leonardo features an advanced automatic camera guidance system, allowing for high-speed cultivation extremely close to the plant row without crop damage.

GuidanceCamera or GPS interface
Operating SpeedUp to 15 km/h
ToolingFinger weeders & stars available
📄 Download Leonardo PDF
Seeder

Sfoggia DrillSem

Sfoggia KSP

Sfoggia Seeding Bar

×

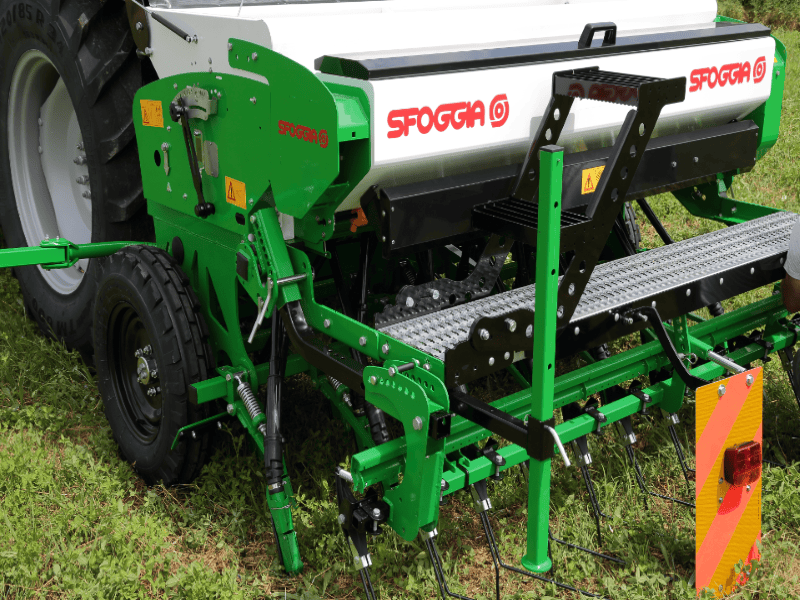

Sfoggia DrillSem

The Sfoggia DrillSem is a versatile mechanical in-line seeder designed for cereals and grass. It offers a range of configurations and accessories to meet the needs of various farming operations.

Key Features:

  • Precise Seed Distribution: Double plastic distribution roller for accurate placement.
  • Multipurpose Hopper: Use for seed only or divide for seed and fertilizer.
  • Versatile Configurations: Carried or pulled versions; options for tooth, sickle, single/double disk.

Models Available: DSA (Coulters), DSD (Single Disc), and DSDD (Double Disc) configurations for Seed, Fertilizer, and Grass/Herbs.

DistributionMechanical Double Roller
Crop TypesCereals, Grass, Herbs
📄 Download DrillSem Brochure
×

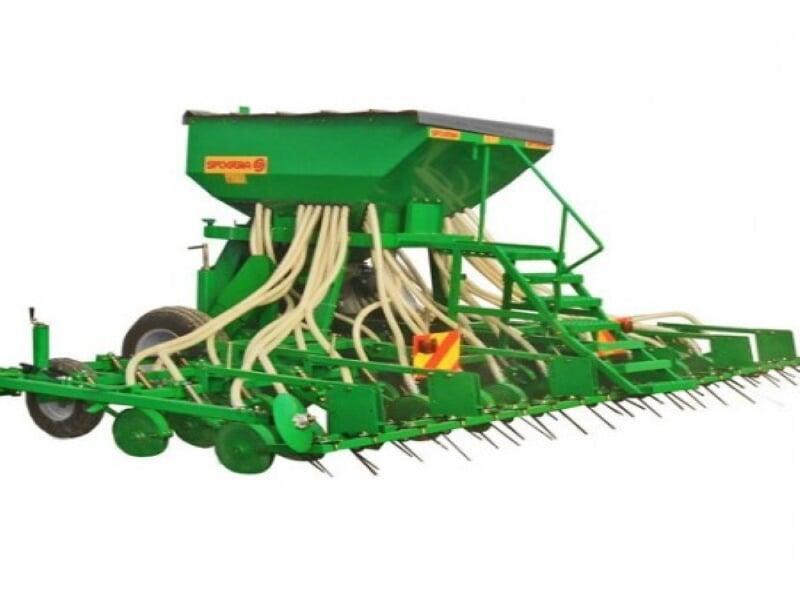

Sfoggia KSP

The Sfoggia KSP is a pneumatic seed drill designed for sowing cereal crops like wheat, barley, and rapeseed. It ensures precise and even seed placement, even on slopes or uneven terrain.

Key Benefits:

  • Hydraulic Folding: Easy transport and manoeuvrability.
  • High-Capacity Hopper: Reduces refill frequency, increasing productivity.
  • Self-Leveling System: Consistent seed depth on uneven ground.
  • Shock Absorbers: Traction wheels allow for faster sowing speeds.
SystemPneumatic Distribution
FrameFixed or Hydraulic Folding
📄 Download KSP Brochure
×

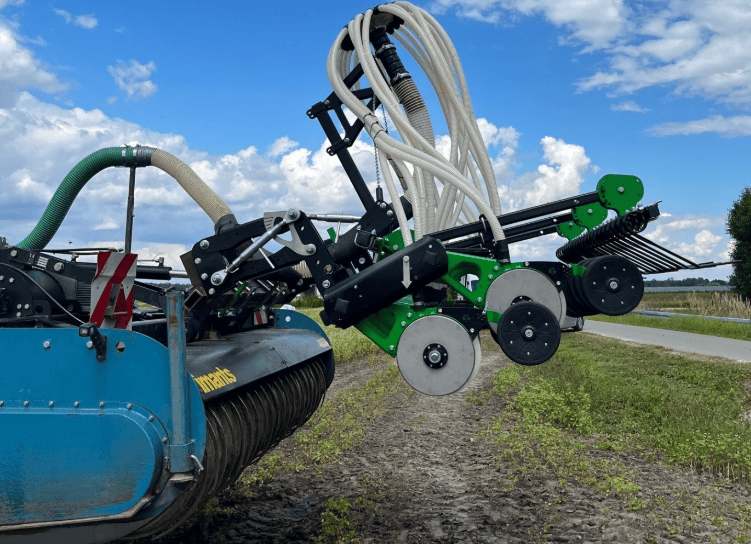

Sfoggia Seeding Bar

The Sfoggia seeding bar is designed for high-efficiency integration, allowing it to be connected behind a power harrow for a complete one-pass seeding solution.

Specifications:

  • Width Options: Fixed bars up to 3m; Hydraulic folding sections for 4m, 5m, or 6m.
  • Standard Build: Includes distribution header, supports, and 110mm spiral pipes.
  • Optional Extras: Lights, road tables, and rear press wheels are available on request.
FoldingManual or Hydraulic
IntegrationPower Harrow Compatible
